Description

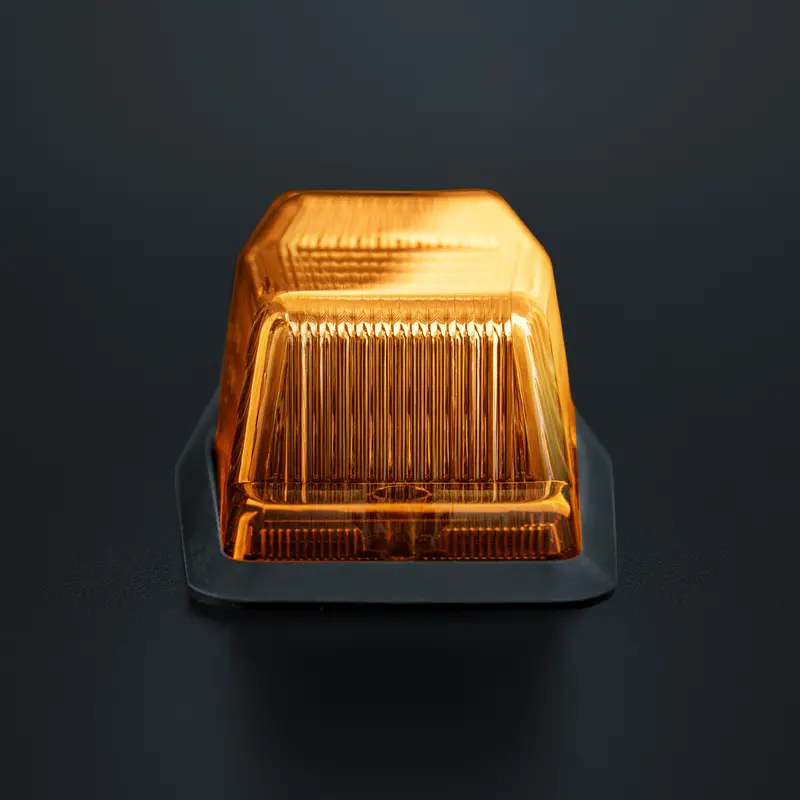

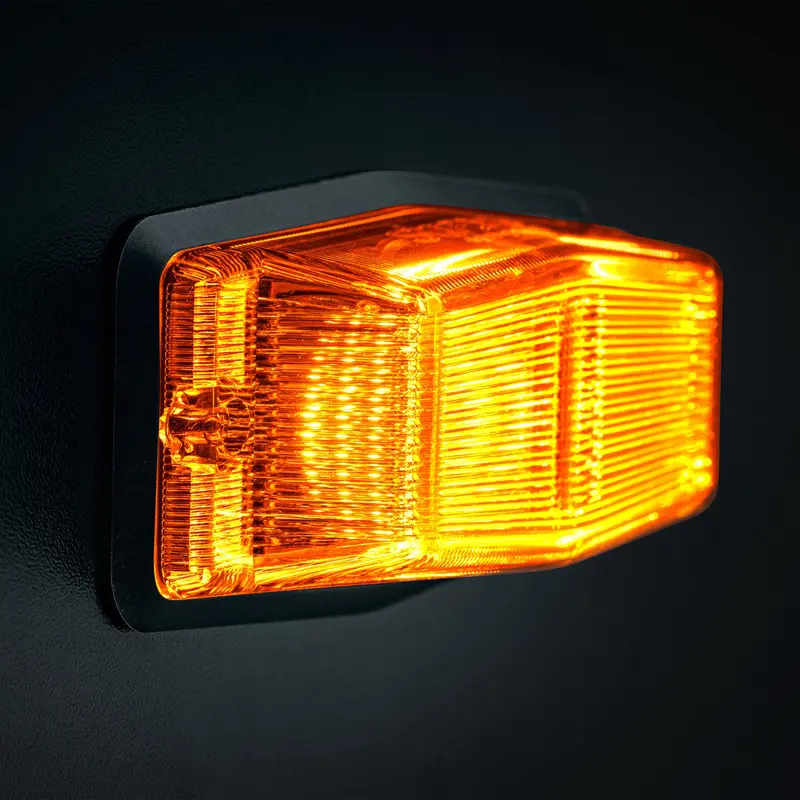

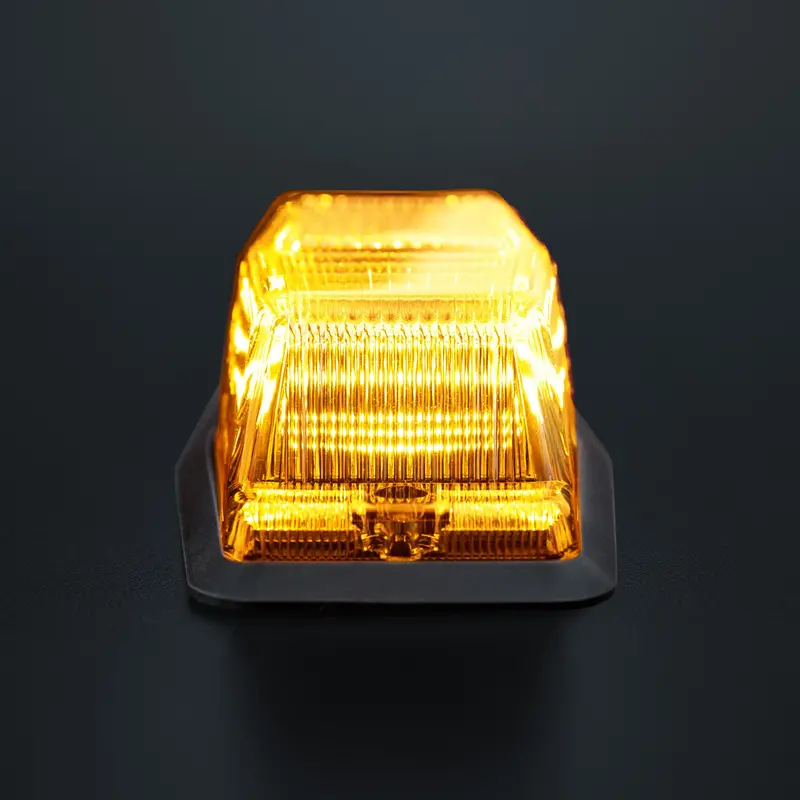

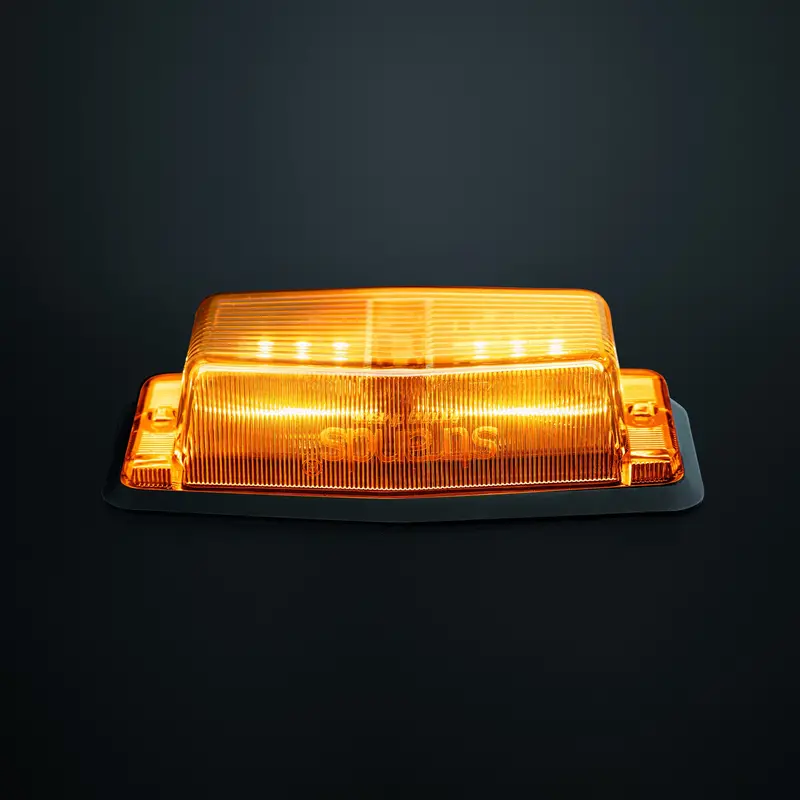

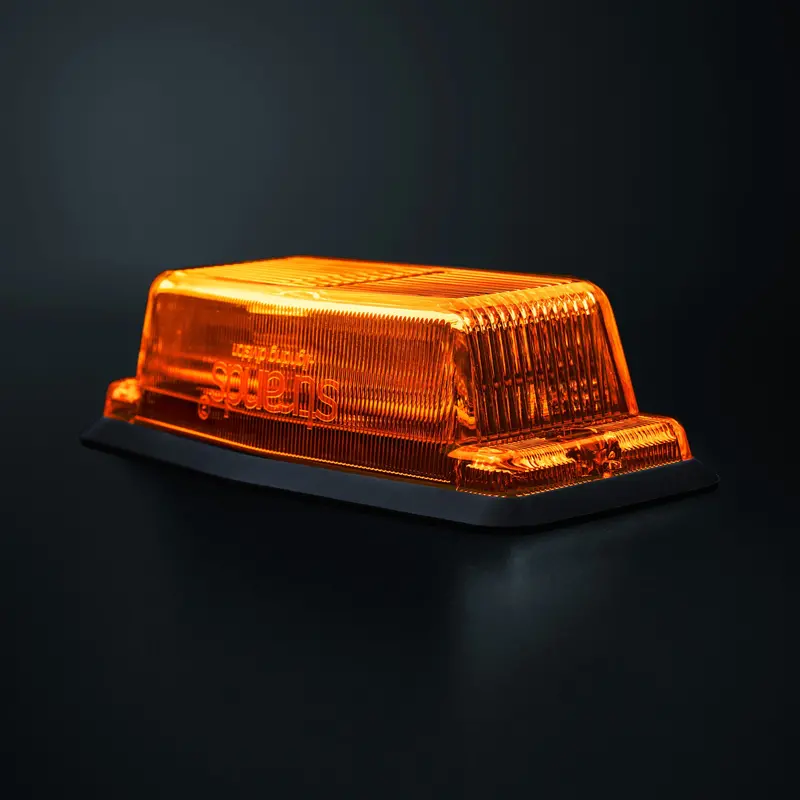

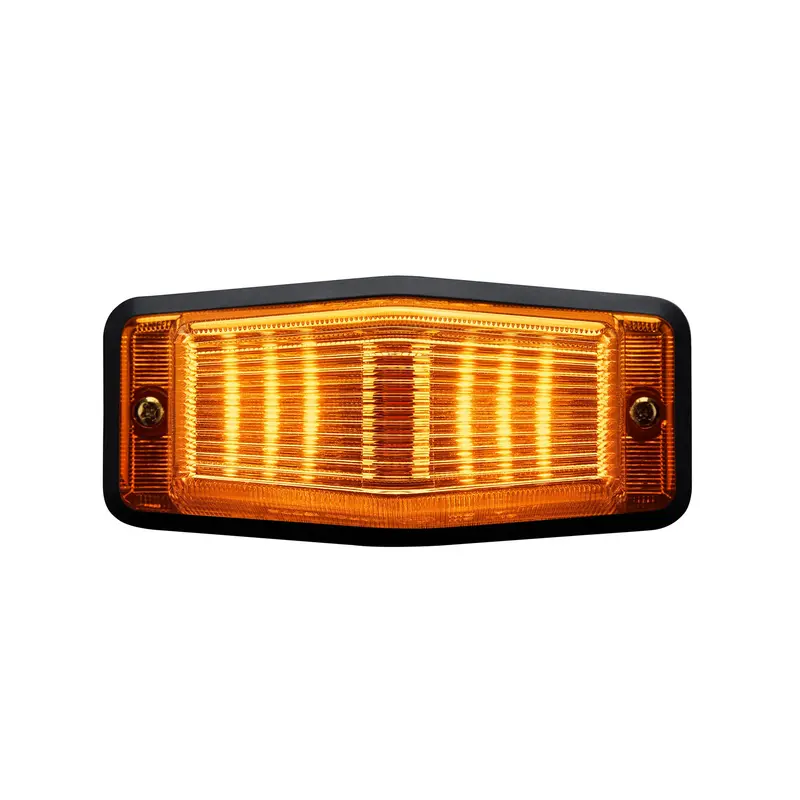

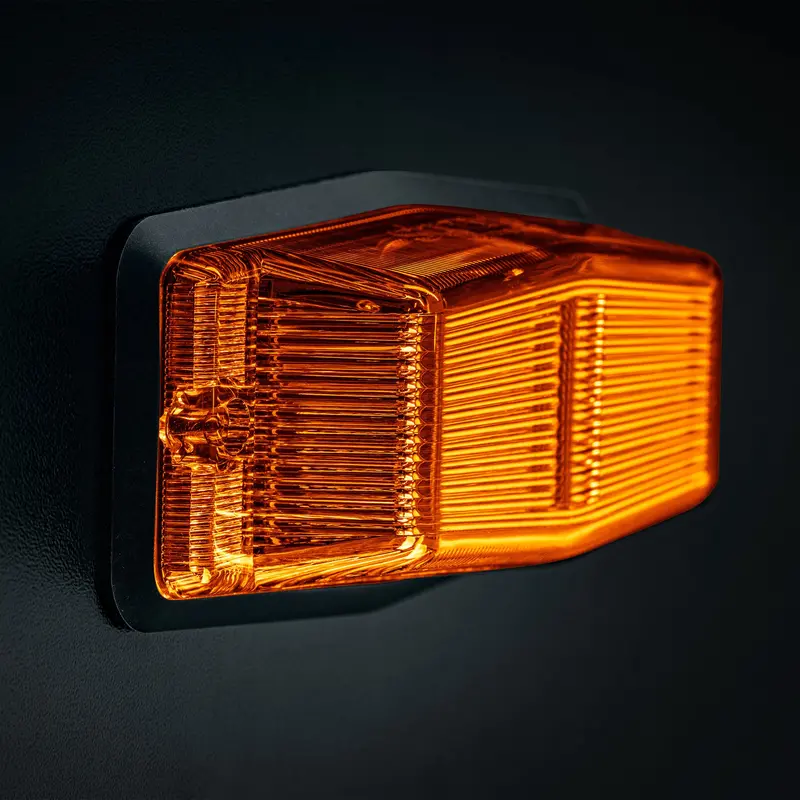

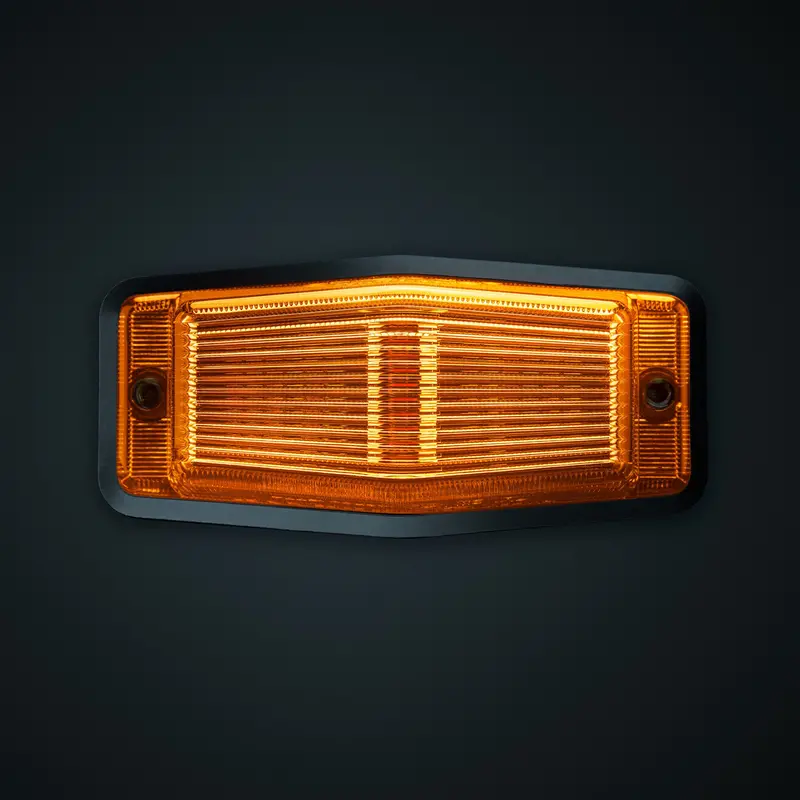

Strands LED Double Burner Light with Strobe / Amber Lens

You want it old-school. eaturing a built-in warning light with 19 patterns, an amber lens, and lasting quality, makes this light a perfect companion for years to come. Strands’ 3-year function warranty guarantees the quality. Made from corrosion-free polycarbonate and IP-rated IP69K, you can be sure this light will withstand heavy rain, dirt, and extreme temperatures with ease. The IZE LED Double Burner is E-approved (R148) and EMC-certified ECE R10. It measures 125 x 52 x 32 mm and 109 mm CC, with a 1 Metre Cable.

Strands LED Double Burner Light with Strobe / Amber Lens

Specifications:

Electrical Parameters

• Voltage (DC): 10–32 V DC
• Theoretical power: 8 W
• Power consumption: 5.5 W

Functions

• Side marker light
• Warning light

Power consumption by function

• Warning light: 2.5 W
• Side marker: 3 W

Lighting Performance

• Flash patterns: 19

Connection

• Type: Cable
• Cable length: 1000 mm

Construction & Materials

• Housing color: Black
• Lens color: Amber
• LED color: Amber
• Housing material: Polycarbonate
• Lens material: Polycarbonate

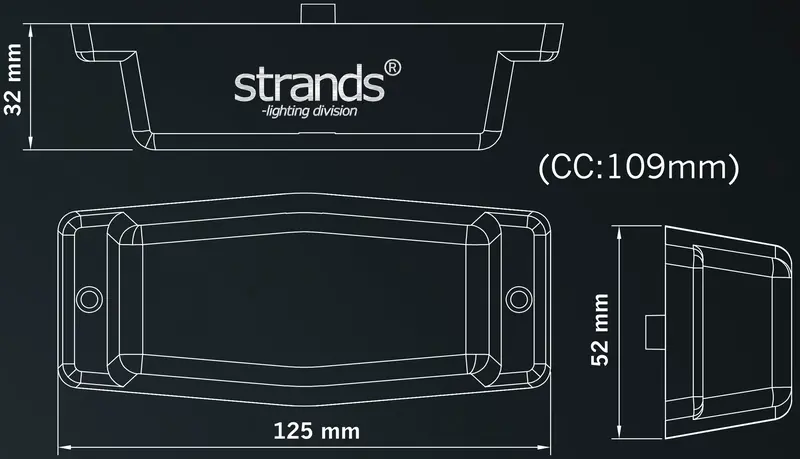

Dimensions & Weight

• Length: 125 mm
• Depth: 32 mm
• Height: 52 mm
• Center-to-center (CC): 109 mm
• Weight: 0.096 kg

Environmental & Compliance

• IP rating: IP69K
• Operating temperature: -30°C to +60°C
• E-approved: Yes
• ECE approvals: R10.06, R148
