Description

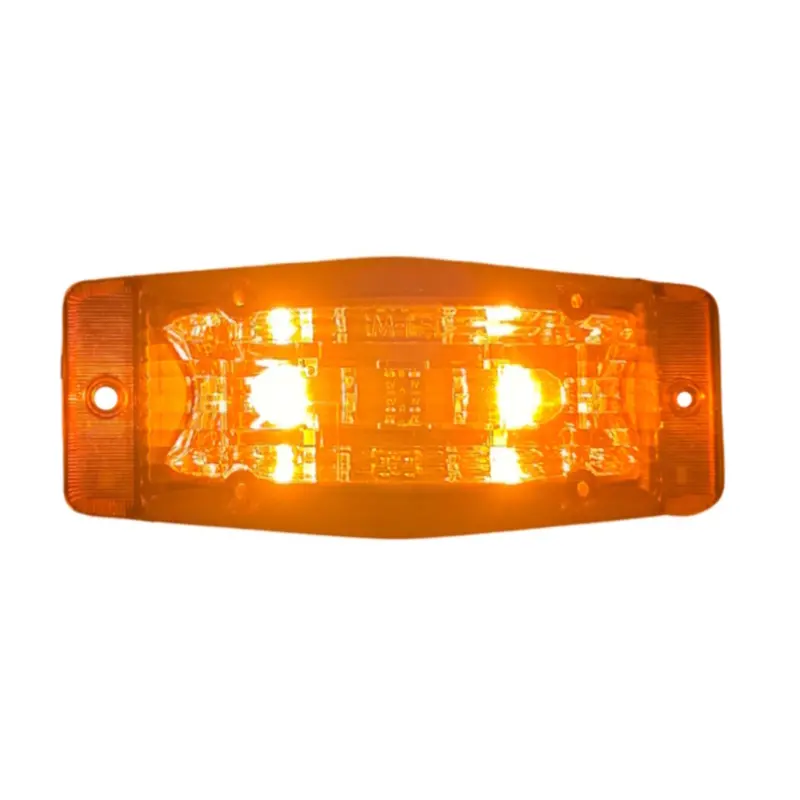

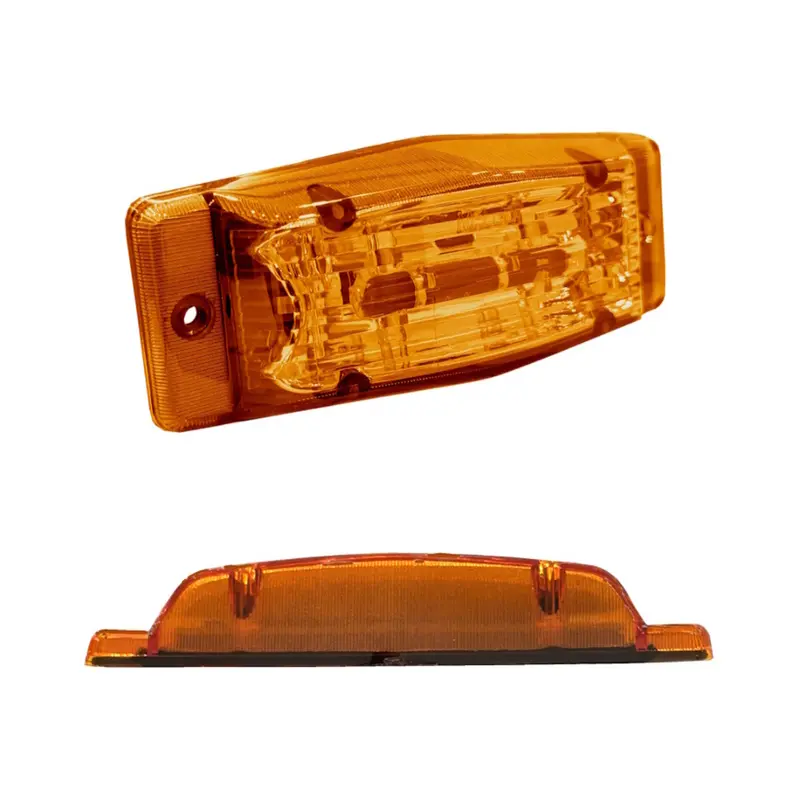

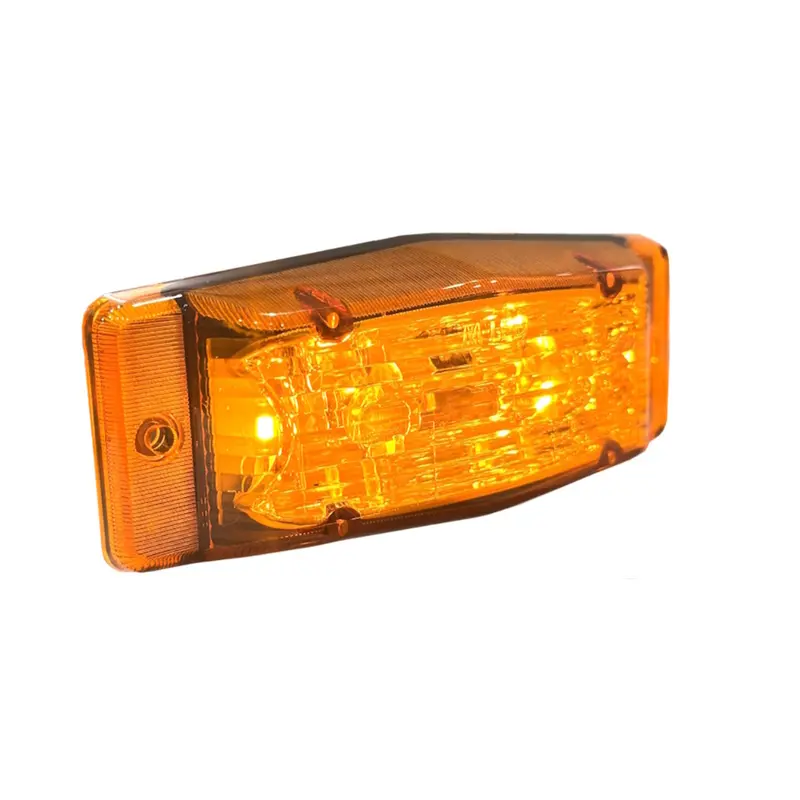

Aero Twin LED Double Burner — Amber

The Aero Twin double burner is a modern, low-profile evolution of the classic LED double burner, combining a timeless design with the reliability of advanced LED technology. This updated version retains its iconic look while introducing several key refinements:

• Slimmer, flatter profile for installation in tighter or shallow mounting spaces
• Redesigned reflector cups and enhanced lens technology for a cleaner, more contemporary appearance
• Compatible mounting points identical to the standard double burner, allowing for easy replacement or upgrade
• UNECE R10 and R148 approved
• Supplied with a 2-metre cable for flexible installation in virtually any location

The M-LED Aero Twin is available in multiple variants. This version features a classic all-amber configuration, with an amber lens and amber position light — ideal for those who prefer a traditional look.

Wiring:

• Black: Ground
• Red: Amber position light

---

Technical Specifications

• Article number: ZM504
• Length: 12.5 cm
• Height: 5.35 cm
• Depth: 2.2 cm
• Shape: Rectangular (block form)
• Voltage: 10–30 V
• Power consumption: 2 W (marker light)
• Current draw:
  • 12 V: 0.17 A
  • 24 V: 0.34 A
• Light colour: Amber
• Number of LEDs: 4
• Lens colour: Amber
• Housing material: Aluminium

Installation

• Mounting type: Screw
• Mounting style: Surface-mounted (flat mounting)
• Bolt spacing: 10.85 cm
• Connection: Cable
• Cable length: 200 cm
• Number of wires: 2

Compliance & Protection

• Certifications: ECE R10, R148
• IP rating: IP67

Additional Information

• Vehicle position: Side
• Packaging: Sold individually
• Manufacturer part number: 8721302891708
• Replacement for: 2BM001321001
