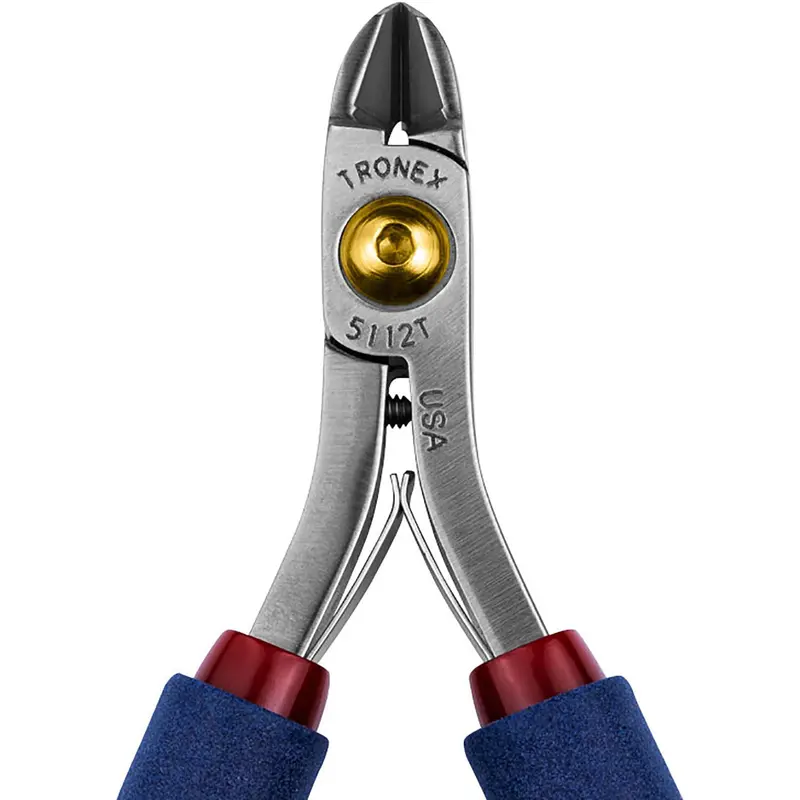

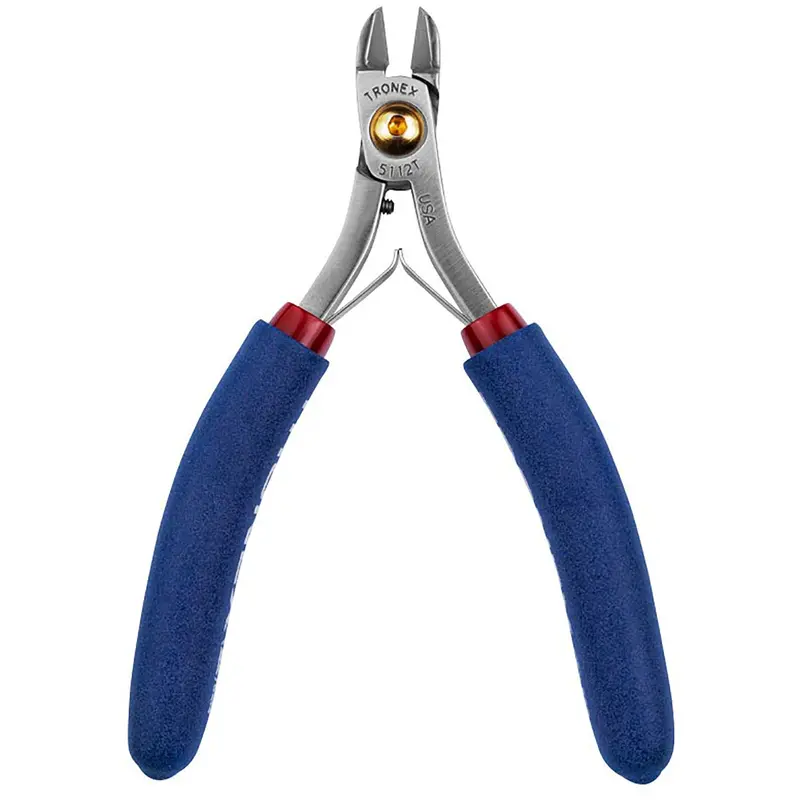

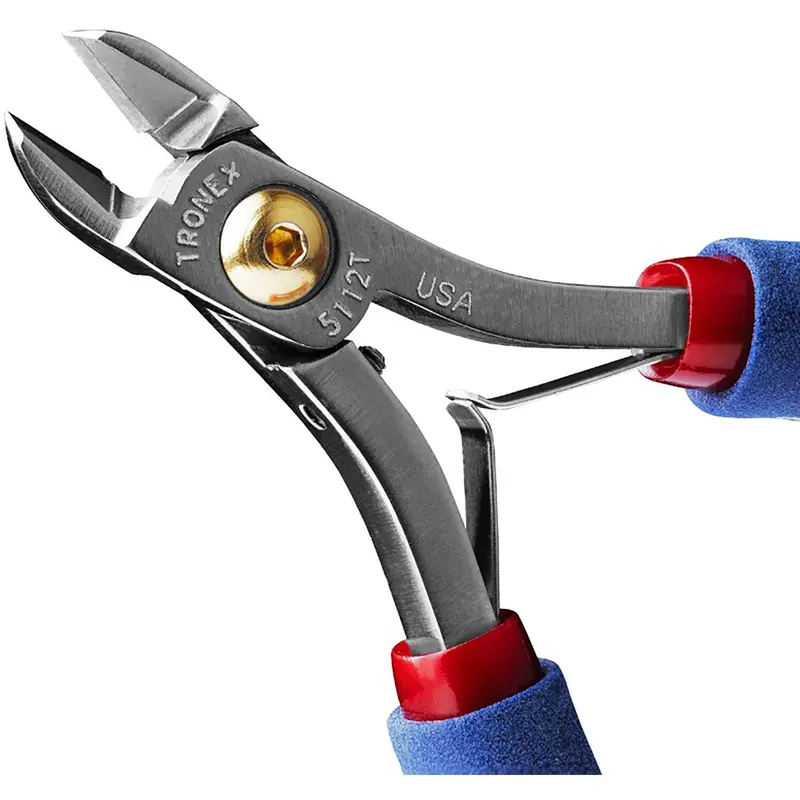

Tronex Medium Oval-Head Hard-Wire Cutters with Carbide-Enhanced Blades

Description

• Application: Designed with a dual material construction combining the high yield strength of carbon steel for the body and intense localized hardness of Tungsten Carbide for the cutting edges.
• Head Shape: Oval Head
• Profile: Standard
• Material: Carbon Steel body, Tungsten Carbide cutting edges
• Material Hardness: 79-81 HRC
• Cutting Edge: Flush
• Cutting Capacity (soft copper wire): .008″ – .025″ (0.2 mm – 0.65 mm); 32-22 AWG
• Handle Length: Standard
• Handle Grips: Cushion Double Sheathed, ESD Safe
• RTT Resistance: <1 x 10¹¹ ohms tested per ANSI/ESD STM11.13 Two-Point Probe, resistance measurement for static dissipative materials

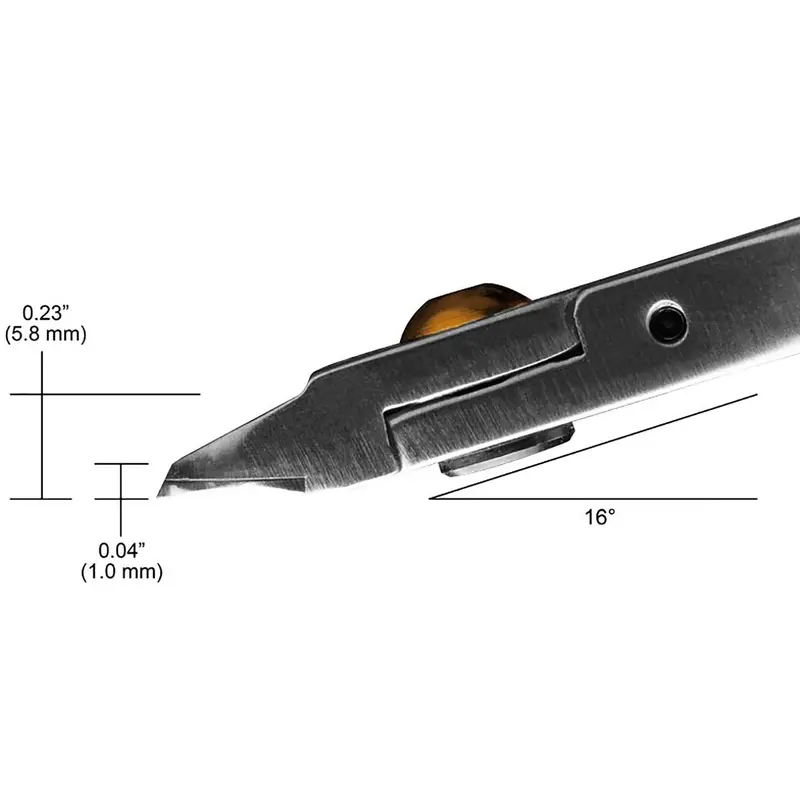

• Overall Length: 4.6″ (117 mm) – Tip Length: .45” (11mm)

Please visit our “Selecting a Cutter” guide to help in the selection of the right cutter.

Carbide Cutters, Cutting Capacity Ratings is for Steel Wire.

Care Tips

These tools have cutting edges made of tungsten carbide.  Tungsten carbide is hard, but also brittle.  If not used within recommended conditions, cutting edges can fracture, crack, or chip.

1. Do not hit or drop the tool on a hard surface.
2. Do not try to bend or distort the tool’s handles or jaw.
3. Do not exert excessive force, such as trying to cut wire thicker than the cutting capacity of the tool, usually .008” – .020” (0.20mm = 0.051mm) diameter steel wire.
4. Keep the cutter clean and dry. Replace tip protector when not cutting.
