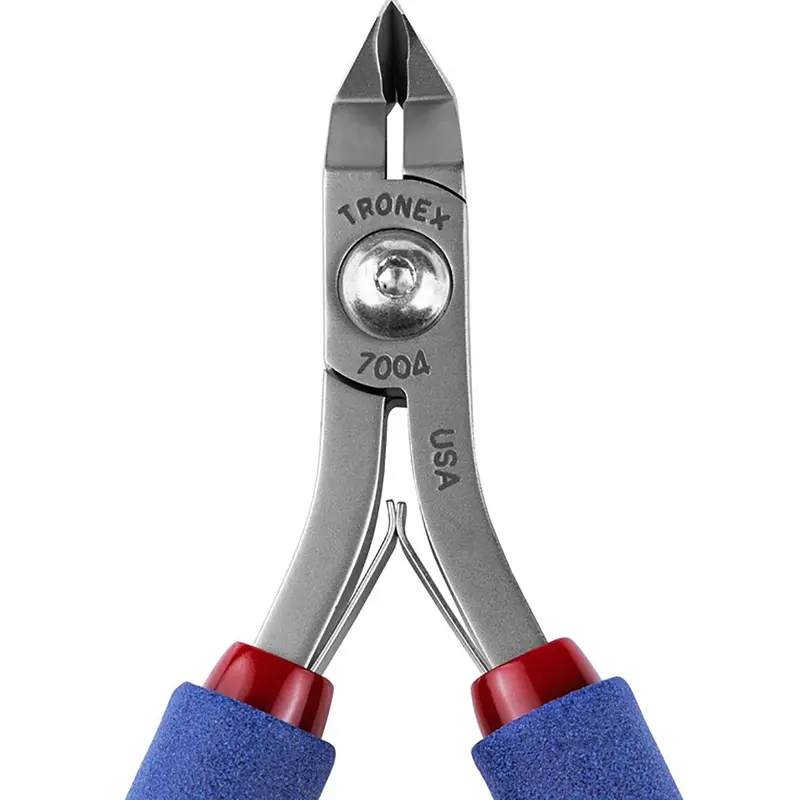

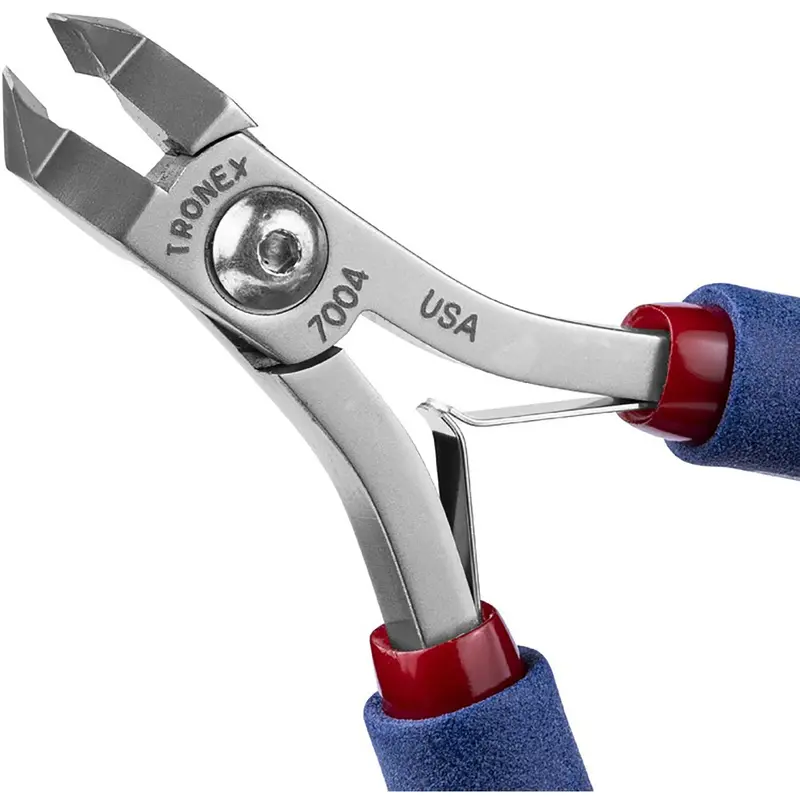

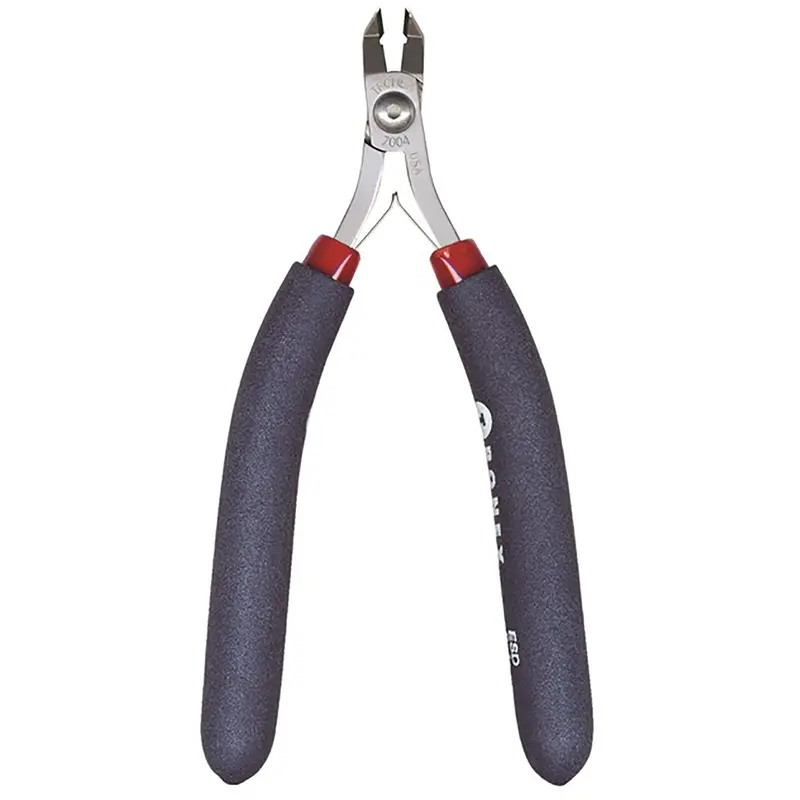

Tronex Angulated 50° Flush Cutters with Tapered Blade Geometry

Description

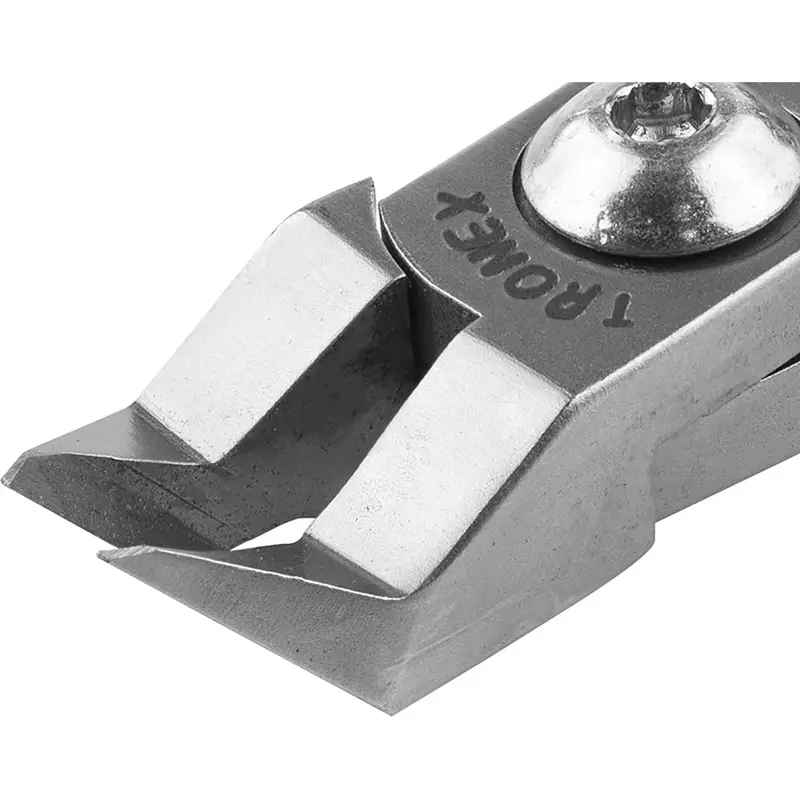

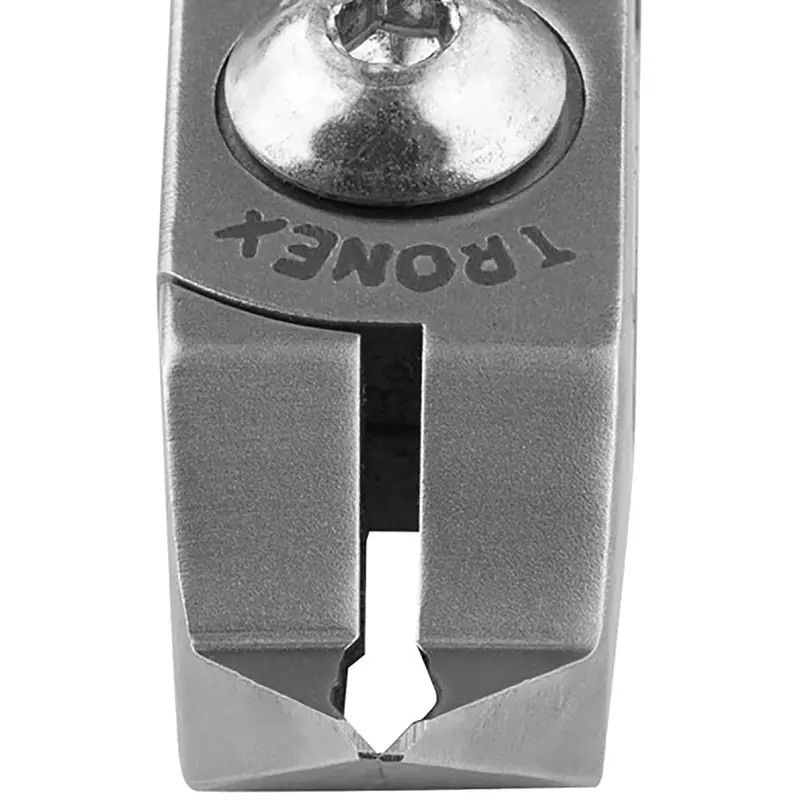

• Application: Cutting edges at an angle to the board are preferred when access to the object being cut is very limited or when the work area is very crowded. 7004 features a large cutting edge with a pointed tip and short jaw for enhanced control.

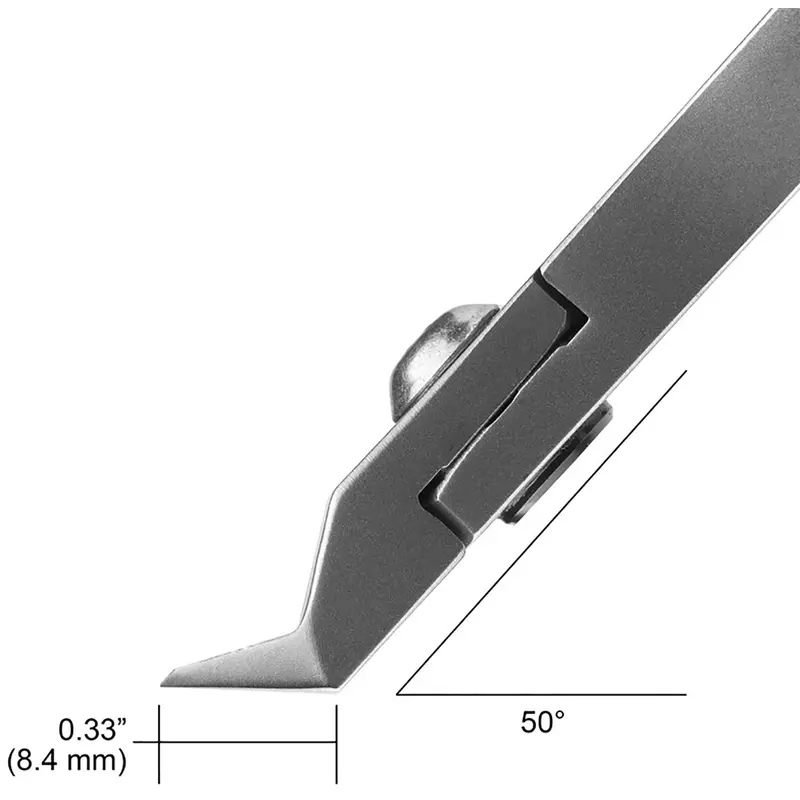

• Head Shape: Angulated 50° Large Taper Head
• Profile: Relief
• Material: Carbon Steel
• Material Hardness: 62-63 HRC
• Cutting Edge: Flush
• Cutting Capacity (soft copper wire): .008″ – .031″ (.2mm – 0.8mm); 32-20 AWG
• Handle Length: Long Ergonomic
• Handle Grips: Cushion Double Sheathed, ESD Safe
• RTT Resistance: <1 x 10¹¹ ohms tested per ANSI/ESD STM11.13 Two-Point Probe, resistance measurement for static dissipative materials

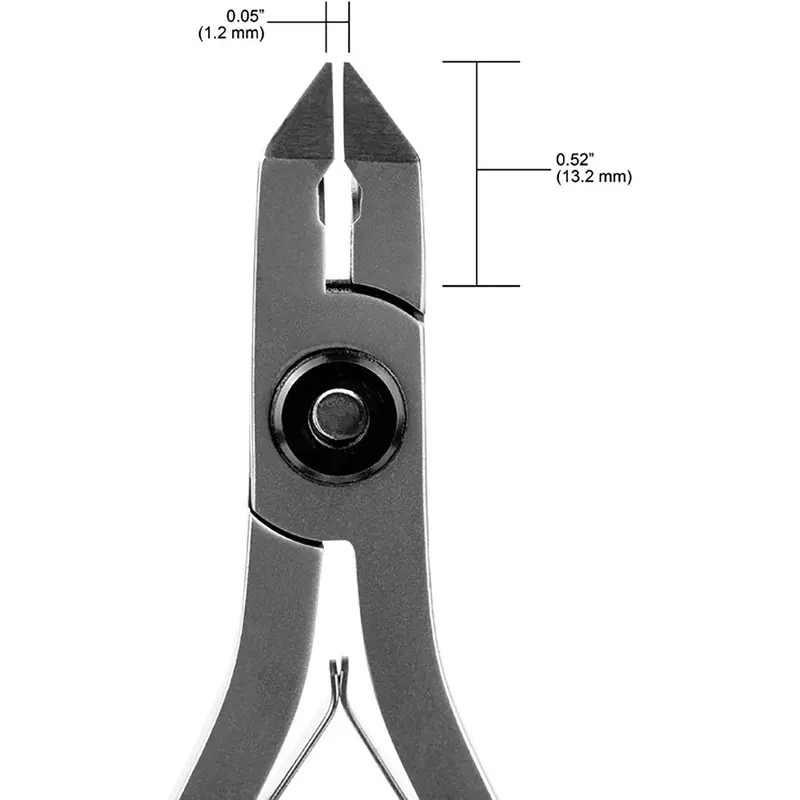

7004 • Overall Length: 5.7” (145mm) – Tip Length: .52” (13mm)

Please visit our “Selecting a Cutter” guide to help in the selection of the right cutter.

All Cutting Capacity Ratings are for soft copper wire.
