Description

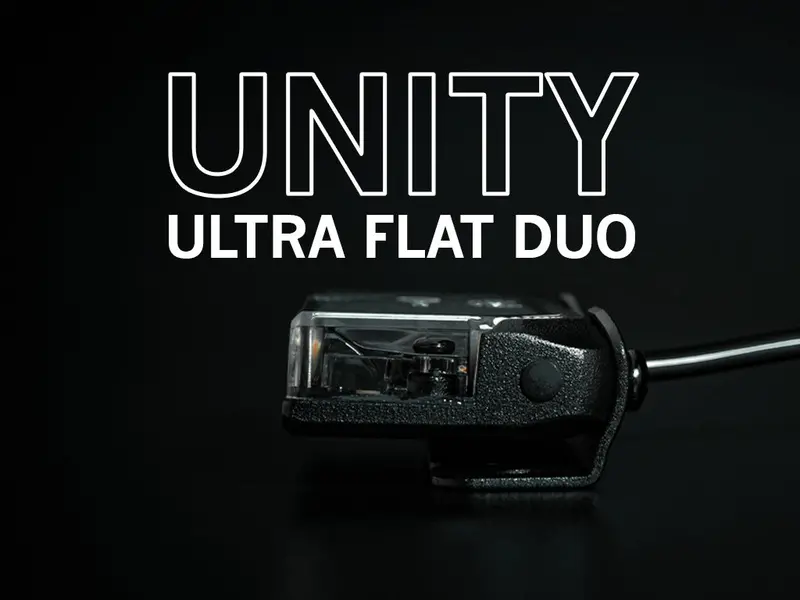

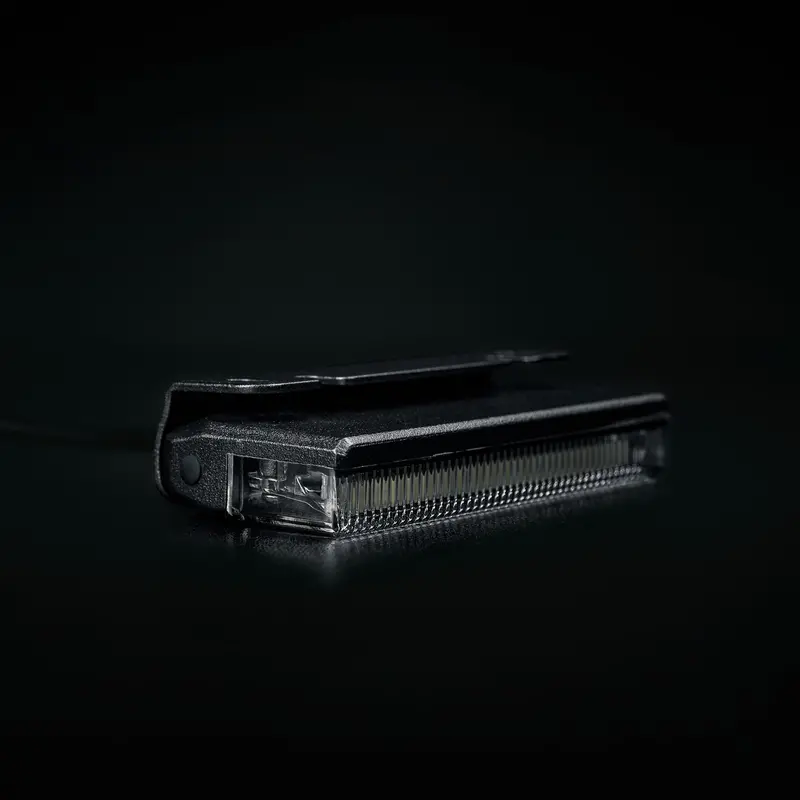

Strands Unity Ultra Flat Duo / Approved Reverse Light with Built-in Strobe

The Unity Ultra Flat  is an E-approved reversing lamp with a built in strobe light (ECE R23/R65) delivers a powerful and precise beam with a 24 m range, significantly outperforming standard lights. Despite its compact and flat size (90x40x21.8 mm, including bracket), it provides excellent visibility while consuming only 9W of power, allowing for multiple installations as needed to enhance safety and efficiency.

Built for durability, the Ultra Flat Duo features a solid aluminium housing, a robust polycarbonate lens, and an IP68/IP69K waterproof and ingress rating, ensuring its reliability in harsh conditions. A special coating protects it from salt, dirt, and water, making it ideal for exposed mounting positions. With its rugged construction and 3-year warranty, the Unity Ultra Flat Duo exemplifies Strands’ commitment to delivering long-lasting, high-quality vehicle lighting solutions.

Strands Unity Reverse Light with Strobe Specifications:

• Voltage (V DC): 10-32V DC
• Power Consumption (W): 17.5 W
  • Reverse Light: 8.5 W
  • Warning Light: 9 W

Light Output:

• Theoretical Lumen: 1100 lm
• Actual Lumen: 600 lm
• 1 LUX @ Distance (m): 24 m
• Color Temperature (Kelvin): 6000 K
• Beam Pattern: Wide beam
• Beam Angle (Width): 137.8°

Features:

• Patterns: 1
• Functions: Reverse light, warning light

Connections:

• Connector: Cable
• Cable Length (mm): 500

Colors:

• Housing: Black
• Lens: Clear
• LEDs: White and Amber

Materials:

• Housing/Chassis: Aluminium
• Lens: Polycarbonate

Dimensions:

• Length (mm): 90
• Depth (mm): 40
• Height (mm): 15
• Height Including Bracket (mm): 21.8

Ratings and Approvals:

• IP-Class: 68/69K
• Operating Temperature: -30°C to +65°C
• ADR-Approved: No
• E-Approved: Yes (ECE R23, ECE R65)
• EMC: ECE R10
