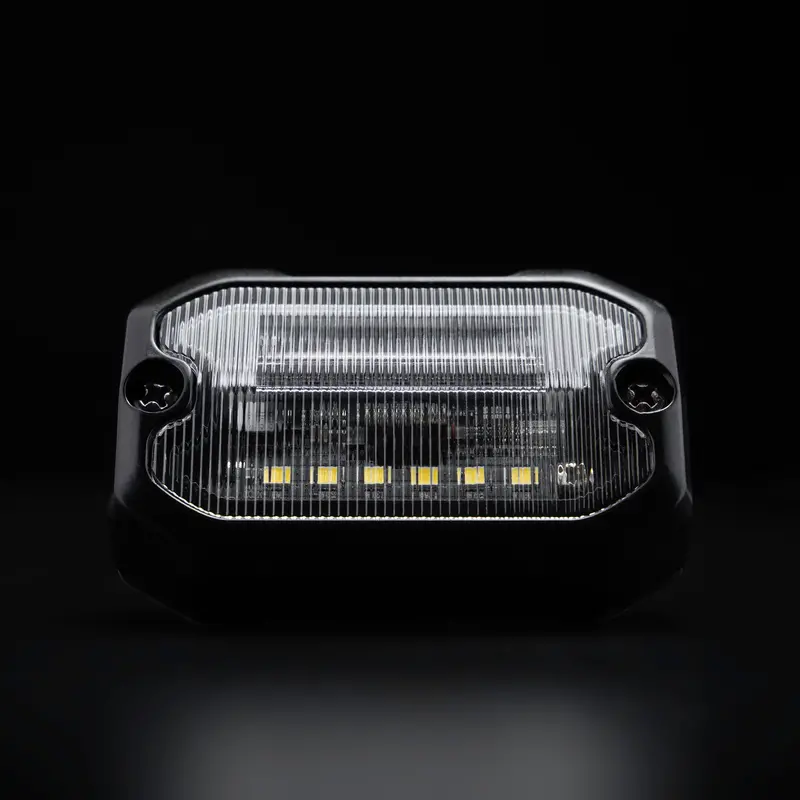

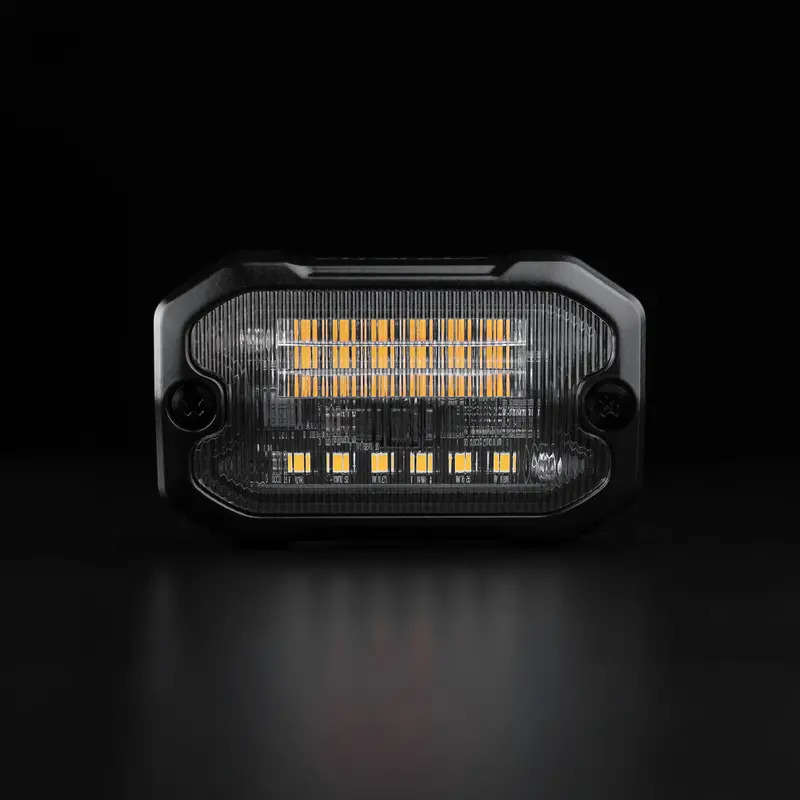

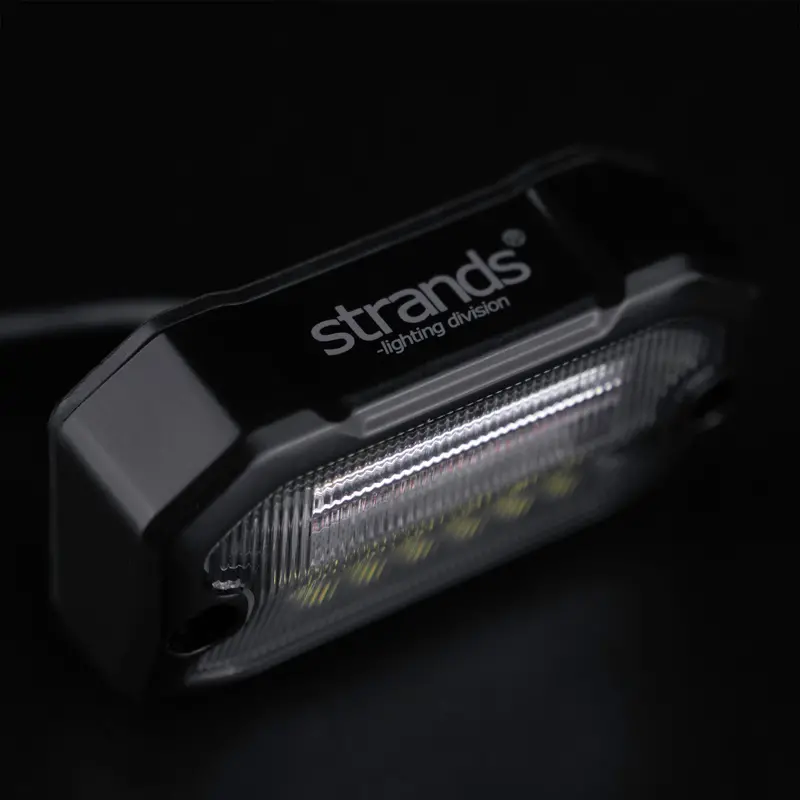

Strands Unity Reversing Light with Built in Strobe – E Approved

Upgrade your reversing lights with the powerful Unity scene light, from Strands. Measuring only 78x22x48 and 65 mm CC, this lamp is compact while still having It has a 14-meter range. It has a warning light function for when extra visibility is required and is E-approved as a reversing light (ECE R23) and a warning light (ECE R65).

The sturdy build, durable materials, and IP-rating IP69K guarantee a long-lived product. It’s made to withstand harsh weather and exposed positions so you can focus on the task at hand. A low power consumption of 4,5 W and 10-32 V DC usage lets you install as many lights as you need on many types of vehicles.

Strands Unity Reversing Light with Strobe Specifications:

• Voltage (V DC): 10-32V DC
• Power Consumption (W): 8.3 W
• Consumption (Specific Functions):
  • Scene light: 4.5 W
  • Warning light: 3.8 W

Features:

• Patterns: 1
• Functions:
  • Scene light / Reverse light
  • Warning light

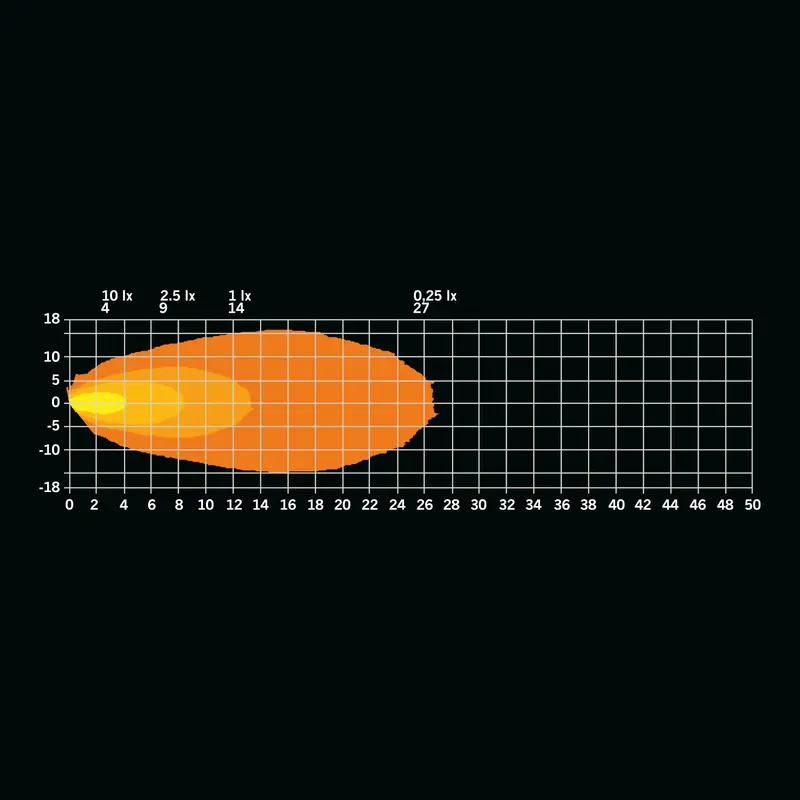

Light Output:

• Theoretical Lumen: 880 lm
• Actual Lumen: 470 lm
• 1 LUX @ Distance (m): 14 m

Lighting Details:

• Color Temperature (Kelvin): 5700K
• Beam Pattern: Wide beam
• Scene Light Beam Angle (°): 75°
• Beam Angle (°) (Width): 143.7°

Connections:

• Type: Cable
• Cable Length (mm): 500

Colors:

• Housing: Black
• Lens: Clear
• LEDs: White and Amber

Materials:

• Housing/Chassis: Aluminium
• Lens: Polycarbonate

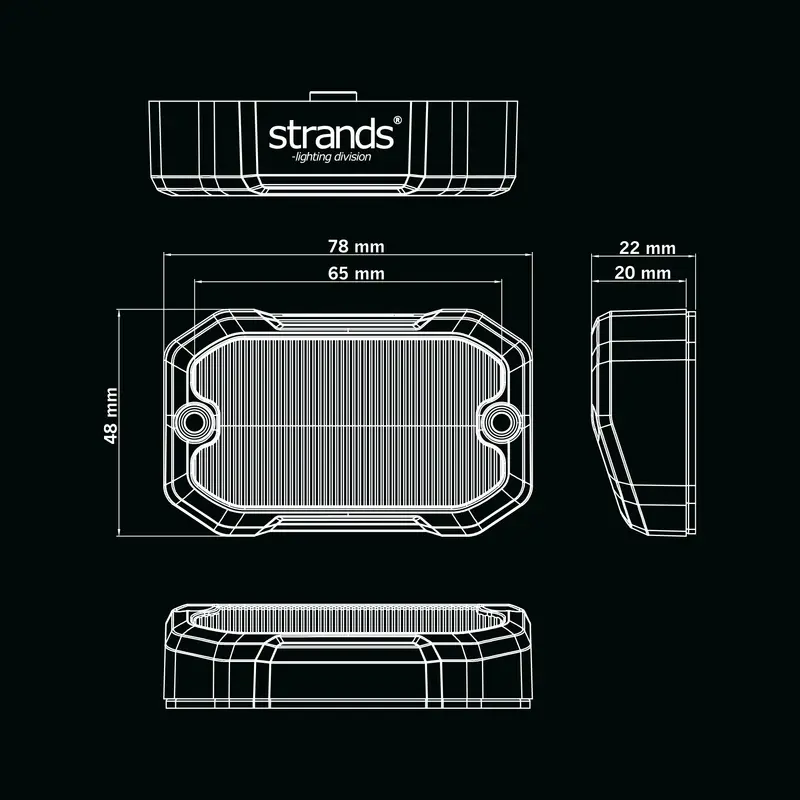

Dimensions:

• Length (mm): 78
• Depth (mm): 22
• Height (mm): 48
• CC (mm): 65

Ratings and Approvals:

• IP-Class: 69K
• Operating Temperature: -30°C to +65°C
• E-Approved: Yes, according to regulations:
  • ECE R23
  • ECE R65
• EMC: ECE R10
