Description

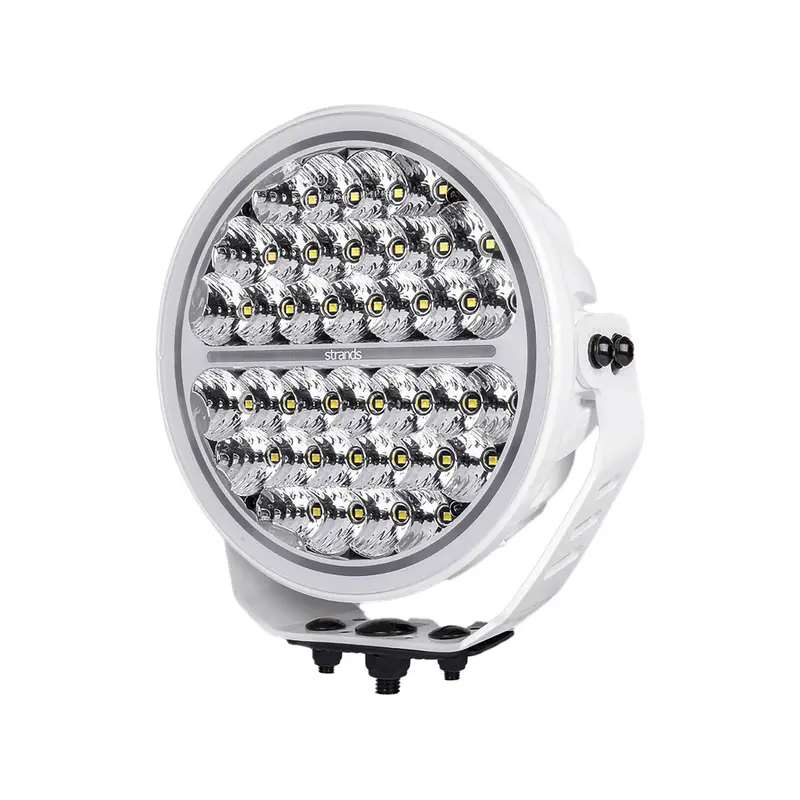

White Strands Night Ranger Spot Light / Driving Lamp

The popular Strands Night Ranger Driving Light is now available in an iconic White Housing. These 9″ round driving lamps have a huge flood beam (13377 Actual Lumens) and are manufactured to the highest standards to withstand extreme driving elements.

These lamps are almost unbreakable with a tough PC Lens and high end white paint housing. You can select the Amber or White Position Light to suit your vehicle when wiring your lamp. It comes pre-wired with 500mm cable with a DT4 Connector included. Check out the images below to see the incredible design of this ground breaking lamp.

• Type of LampLED
• PCS LED´s34
• Voltage (V DC)9-32V DC
• Theoretical effect (w) 12V170
• Theoretical effect (w) 24V170
• Consumption (w) 12V99
• Consumption (w) 24V99
• Theoretical lumen20400
• Actual lumen13377
• 1 LUX @ m465
• Kelvin6000
• IP-class69K
• Color housingWhite
• Color lensClear
• Color LED´sAmber & White
• Beam patternDriving beam
• Position lightYes
• ConnectionDT-4
• Cable length (mm)500
• Material bracketStainless steel
• Material housing/chassiAluminium
• Material lensPolycarbonate
• Length (mm)228,6
• Depth (mm)86,7
• Height (mm)228,6
• Height including bracket (mm)249,3
• Diameter (mm)228,6
• Operating temperature-20°C – +45°C
• E-approvedYes
• According to regulationECE R112, R7
• Reference number30
• EMCECE R10
