Strands Dark Knight Nuuk LED Light Bar / 20″
Strands Dark Knight Nuuk has a 20 inch dark smoked lens with 11400 Raw Lumens and a selectable Amber or White Position Light. The beam pattern on this lamp is extraordinary for its size. It has long range spot beam and a wide flood beam, excellent for driving on or off road.
This lamp is pre-wired with 500mm of cable and is supplied with a DT4 connector at the end for plug and play set-up with the Strands Wiring Kit
Strands Dark Knight Nuuk Specs:
- Type of lamp LED
- Type of LED LP
- PCS LED´s 12
- Voltage (V DC) 9-36V DC
- Theoretical effect (w) 12V 120
- Theoretical effect (w) 24V 120
- Consumption (w) 12V 94
- Consumption (w) 24V 94
- Consumption specific function (w) 12V White position light: 3
Amber position light: 3 - Consumption specific function (w) 24V White position light: 3.6
Amber position light: 3.6 - Theoretical lumen 11400
- Actual lumen 9500
- 1 LUX @ m 452
- Kelvin 6000
- IP-class 68/69K
- Colour housing Black
- Colour lens Black
- Beam pattern Combo
- Position light Yes amber and white
- Connection DT4
- Cable length (mm) 500

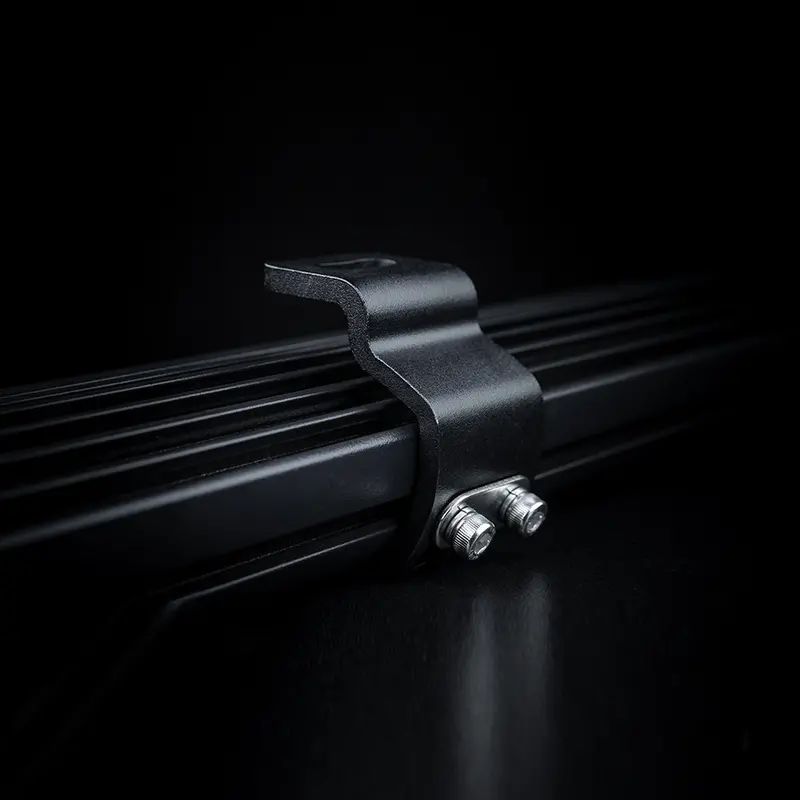

- Material bracket Side bracket:
Stainless steel (SUS201)
Bottom bracket:
Aluminium (#6063) - Material housing/chassi Aluminium
- Material lens Polycarbonate
- Length (mm) 515
- Depth (mm) 69.8
- Height (mm) 38.5
- Height including bracket (mm) 51.3
- Operating temperature -40°C – +60°C
- ADR-approved No
- E-approved Yes
- According to regulation ECE R7 R112
- Reference number 40
- EMC ECE R10
