Description

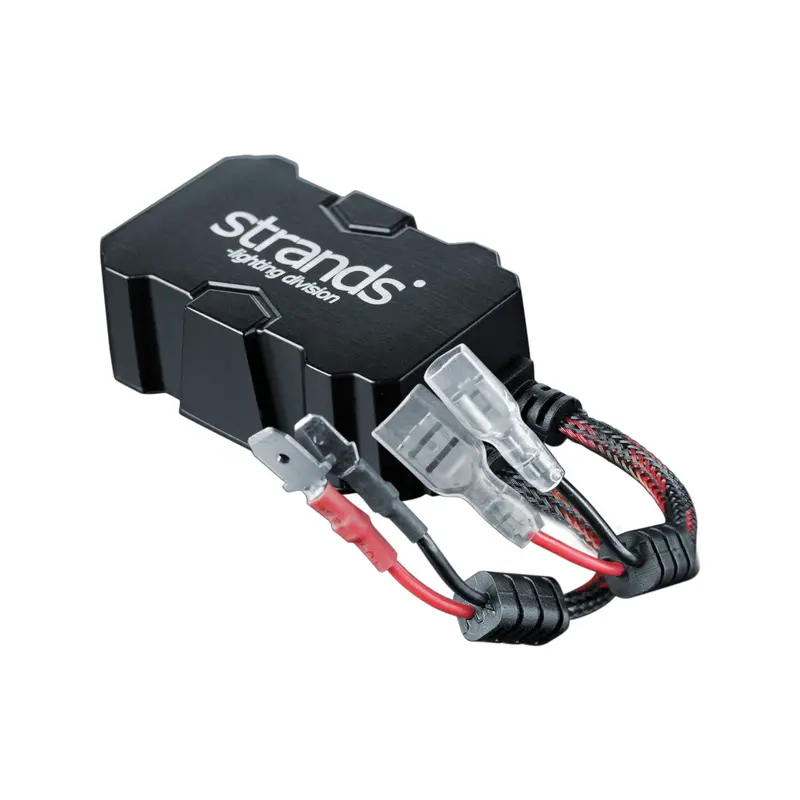

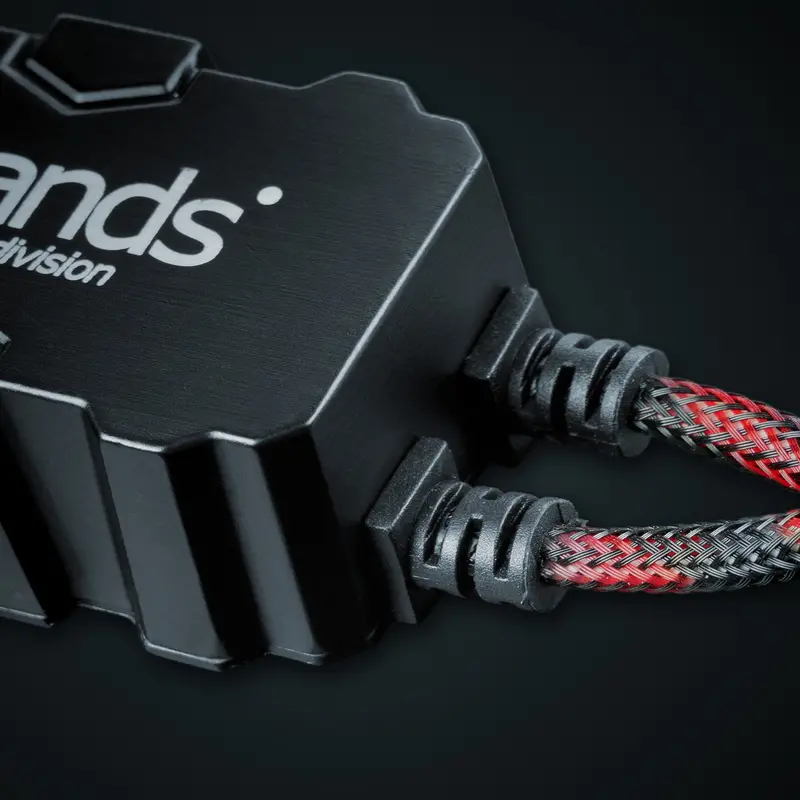

CAN Bus Decoder for H1/H3 LED Conversion Kits – Error-Free Installation

Ensure seamless compatibility when upgrading your vehicle lighting with the Big Energy CAN bus decoder with H1/H3 connectors (Part No. 901001-02). This decoder is used if you get error messages after installing LED bulbs.

Fix Bulb Errors and Compatibility Issues
Modern vehicles may not recognize aftermarket LED kits without additional support.

CAN bus support: Eliminates error messages after installation
Vehicle recognition: Ensures the system correctly detects your new LED bulbs

Compatibility with H1/H3 Systems
Built for flexibility.

H1/H3 compatibility: Works with both connectors and sockets
Optimized for Big Energy conversion kits: Ensures reliable performance and fit

Built for Hassle-Free Upgrades
This decoder is an essential component for achieving a fully functional LED conversion, ensuring smooth operation without system conflicts.

Core Electrical & Performance

Voltage (DC): 9–16V DC
Operating Temperature: -40°C to +85°C
IP Rating: IP67 (Dust-tight and waterproof)
Function: Dashboard error message resolution (Decoder)

Physical Build & Dimensions

Material: Aluminum housing/chassis
Housing Color: Black

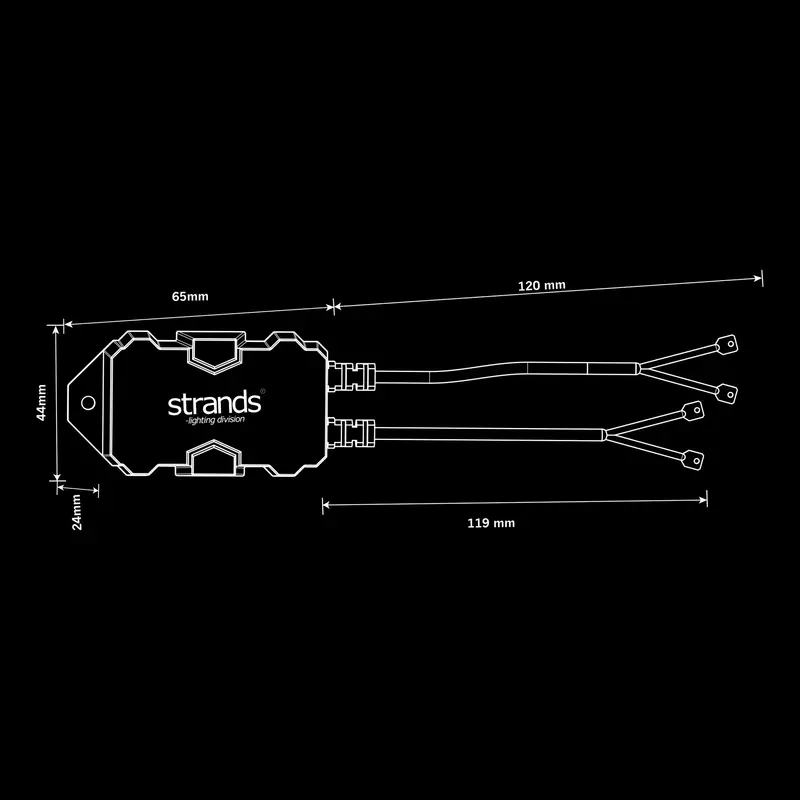

Dimensions: 65mm (L) x 44mm (D) x 24mm (H)
Weight: 0.2 kg

Installation & Connectivity

Unit Quantity: Pair (2 pieces)
Connection Type: H1/H3 plug
Cable Length: 120mm

Compliance

E-approved: No

Note: This unit is specifically engineered to bridge communication between aftermarket lighting and vehicle CANbus systems to eliminate “bulb out” warnings.
