Description

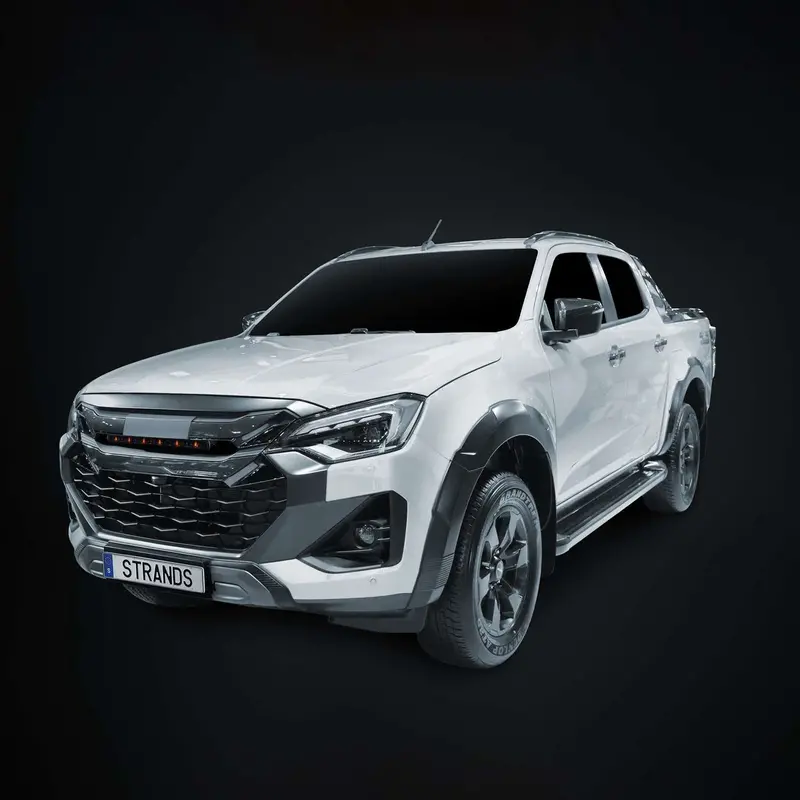

Strands 20″ Dark Knight Nuuk Light Bar Grille Kit for Isuzu D-Max 2025

The 20″ Dark Knight Nuuk is a powerful dark style light bar with a position light that can set to either white or amber.

Click here to view the Strands installation guide

Experience Powerful Lighting
Experience powerful lighting with Strands Lighting Division – over 409 m range and a 4× wider beam than standard high beams.

Model-Adapted Lighting Solution for Isuzu D-Max
Designed for seamless integration and hassle-free installation:

• High-performance LED light bar: Powerful LEDs and advanced optics deliver exceptional range and width, illuminating the road ahead and surroundings.

• Model-specific mounting brackets: Robust brackets ensure precise fit and stable mounting without complex modifications.

• Complete wiring harness: Plug-and-play design simplifies installation and ensures reliable performance.

• CAN-BUS Interface (for applicable vehicles): Many modern vehicles use CAN-BUS electrical systems. A CAN-BUS interface may be required for proper integration. Check our compatibility list* for your vehicle.

Key Benefits for Drivers

• Extended range and wider beam: Actual luminous flux of 9,500 lumens, illuminating 409 m at 1 lux, over 4× wider than standard high beams.

• Stylish integration: Complements vehicle aesthetics without compromising functionality.

• Affordability: Competitive pricing provides excellent value.

Key Benefits for Professional Installers

• Time and labor savings: All-in-one solution eliminates the need to purchase individual components.

• Easy installation: Plug-and-play wiring and model-specific brackets streamline workflow.

• Premium quality and support: 3-year warranty and dedicated customer service enhance your offering.

Important CAN-BUS Information
Most modern vehicles use CAN-BUS electrical systems, requiring a special interface for proper integration. Standard kits do not include the interface. Strands Lighting Division offers CAN-BUS solutions to ensure compatibility. Always check your vehicle specifications or contact customer service. Incorrect installation without the interface may cause electrical issues.

Our Commitment from Strands Lighting Division

• 3-year warranty: Comprehensive coverage on all products.

• Excellent customer service: Expert support available for questions and guidance.

• Industry expertise: Trusted automotive lighting experience since 2004.

*CAN-BUS interface sold separately. Compatibility list may not be up to date – contact us if your vehicle is not listed.
**This is an aftermarket product from Strands Lighting Division.

Specifications:

• Voltage: 10–36V DC
• Theoretical Power: 120W
• Power Consumption: 94W
• Specific Function Consumption:
  • White position light: 3.6W
  • Amber position light: 3.6W
• Theoretical Luminous Flux: 11,400 lm
• Actual Luminous Flux: 9,500 lm
• Light Output: 1 lux @ 409 m
• Color Temperature: 5,700K
• Beam Pattern: Optimized beam
• Beam Angle: 15.6°
• Connection: DT-4PIN
• Cable Length: 500 mm
• Housing Color: Black
• Lens Color: Black
• Depth: 69.8 mm
• IP Class: IP68 / IP69K
• Operating Temperature: -40°C to +60°C
• E-Approved: Yes
• Regulations: ECE R7, R112
• Reference Number: 40
• EMC: ECE R10
• Additional Information: Combined consumption and output
