Description
NEW SKID-MOUNTED DOUBLE-WALL FUEL TANKS & PUMPS
Available Models:
- 20,000 L Capacity (122031)
- 40,000 L Capacity (122034)
Freight:
- Free freight within Edmonton, Ponoka, Calgary, & Red Deer.
- Outside these areas, the following freight charges apply:
- Alberta: 5% of the sale price
- Saskatchewan: 10% of the sale price
- Manitoba: 10% of the sale price
- Please note: Freight covers transportation to our main warehouse or depot locations only. It does not include delivery to the customer’s site.

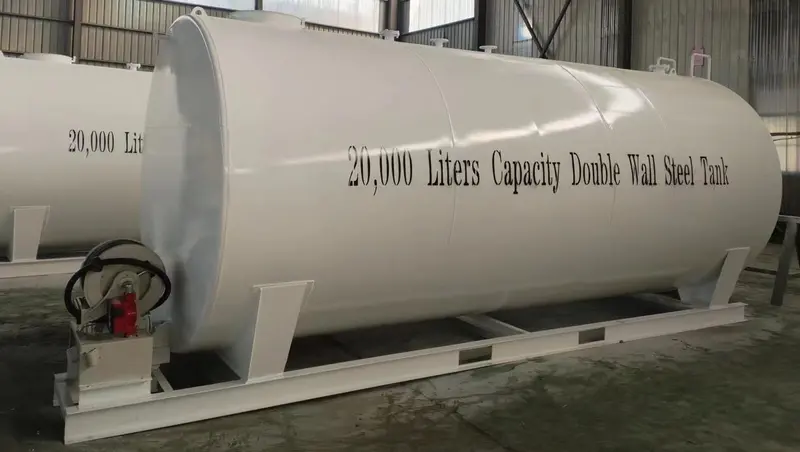

TANK DETAILS:
- Construction: Double-wall
- Access: Removable ladder, quick-opening manhole
- Safety: Fire-blocking air vent and nozzle, leakage detector
- Level Monitoring: Side-mounted magnetic flap liquid level gauge

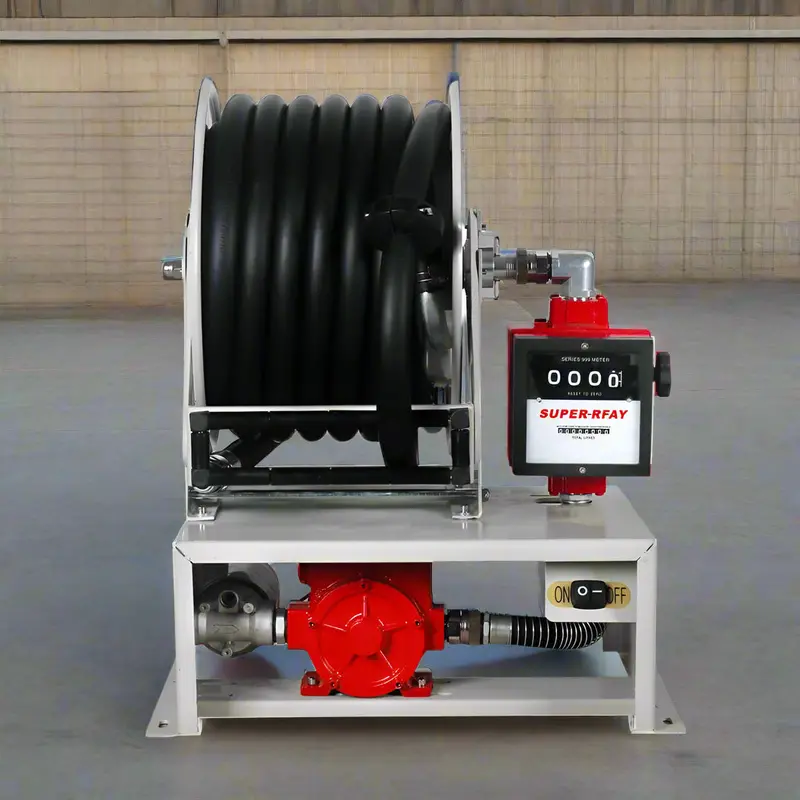

INCLUDED TRANSFER PUMP (Model YNC-20-001):
- Power: 110V
- Hose Reel: 50 ft hose reel
- Hose Size: 1 inch
- Hose Material: Cast iron
- Working Pressure: 1300 PSI
- Burst Pressure: 5200 PSI
- Temperature Range: 68°F to 180°F (20°C to 82°C)
- Reel Inlet: 1 inch BSP
- Hose Length: 15 meters (49.2 feet)
- Flow Meter Accuracy: ±1%
- Pump Flow Rate: 55 liters/minute (14.5 gallons/minute)
TANK DIMENSIONS:
- Length: 5950 mm (19.52 feet)
- Width: 2250 mm (7.38 feet)
- Height: 2550 mm (8.37 feet)
Weight:
4600 kg = 10141.26 pounds
INCLUDED TRANSFER PUMP (Model YNC-40-001):
- Power: 110V
- Hose Reel: 50 ft hose reel
- Hose Size: 1 inch
- Hose Material: Cast iron
- Working Pressure: 1300 PSI
- Burst Pressure: 5200 PSI
- Temperature Range: 68°F to 180°F (20°C to 82°C)
- Reel Inlet: 1 inch BSP
- Hose Length: 15 meters (49.2 feet)
- Flow Meter Accuracy: ±1%
- Pump Flow Rate: 55 liters/minute (14.5 gallons/minute)
TANK DIMENSIONS:
- Width: 2300 mm (7.55 feet)
- Length: 11200 mm (36.75 feet)
- Height: 2550 mm (8.37
Q: What warranty is included with the tank?
A: If any defects or quality issues arise from the product itself, we will provide free repair or replacement. Damage caused by misuse or external factors is not covered, and repair costs will be the customer’s responsibility.
Q: How can the tank be refueled?
A: The tank can be refueled using two methods: tanker truck refueling or manual refueling with a pump.
Q: How does tanker truck refueling work?
A: A quick-connect unloading valve can be installed at the tank inlet and matched to the tanker truck’s discharge pipe. Fuel is then transferred using the tanker truck’s built-in pumping system.
Q: What if I am not using a tanker truck?
A: If refueling is not done via a tanker truck, you will need to use a fuel transfer pump to fill the tank.
