Description

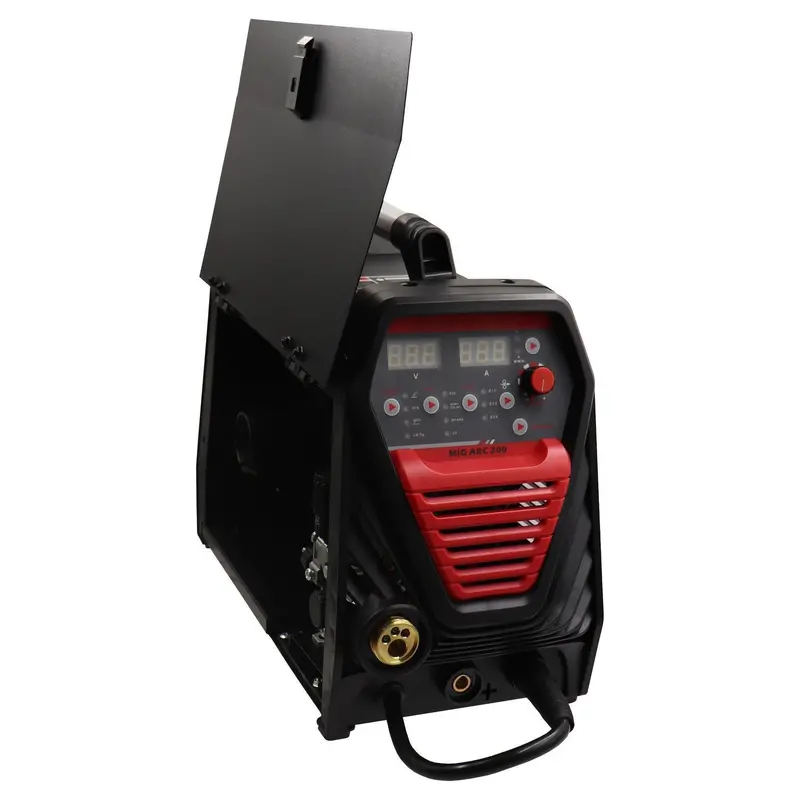

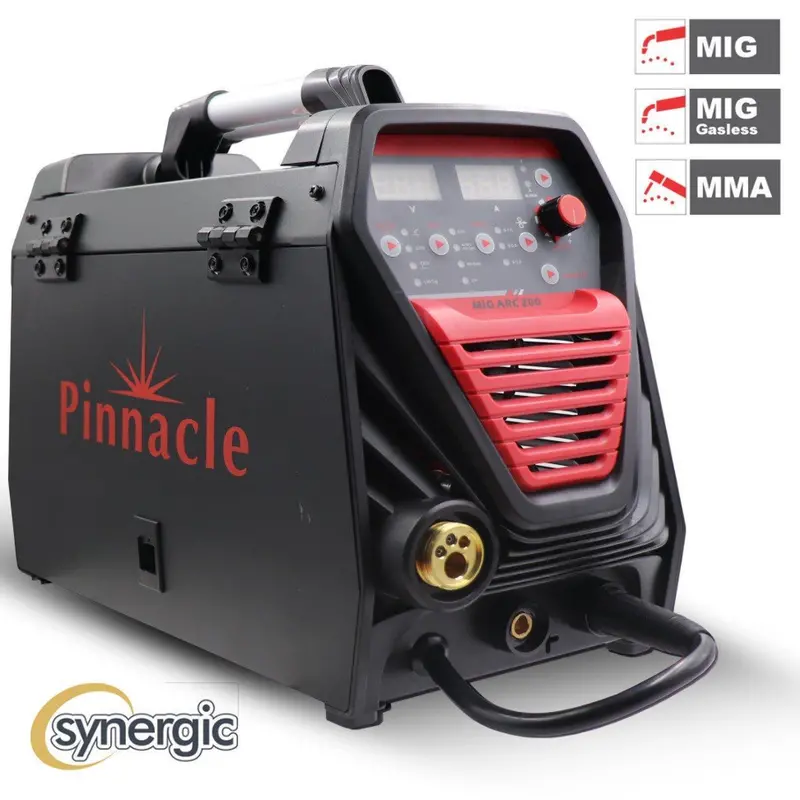

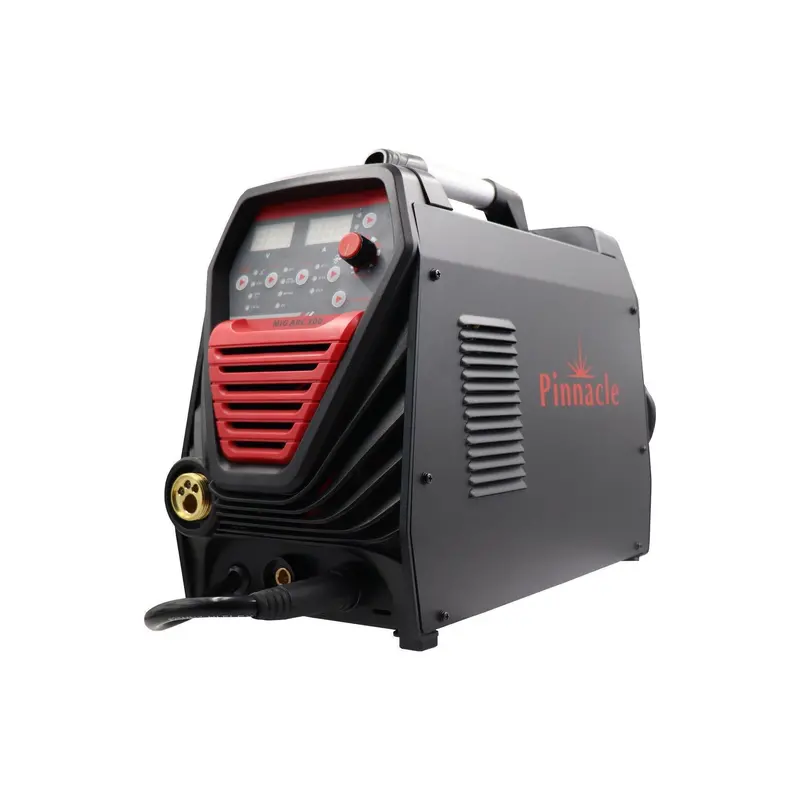

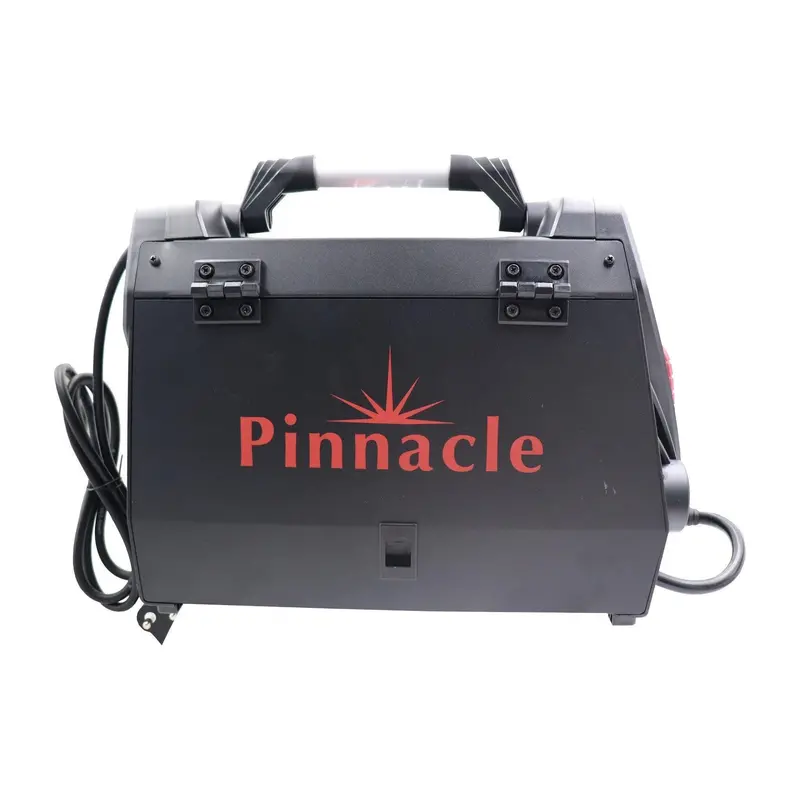

The Pinnacle MIGARC 200 Digital Welding Machine is a compact, high-performance multi process inverter welder designed for precision and ease. With full support for MIG (gas & gasless), MMA (Stick), and Lift TIG welding, it features a synergic digital control panel that auto-adjusts wire speed and voltage for smoother welds. Whether you’re working in a garage, workshop, or on-site, this machine delivers plug & play simplicity with serious welding power.
Key Features
• MIG (gas & gasless), MMA (Stick), and Lift TIG welding processes

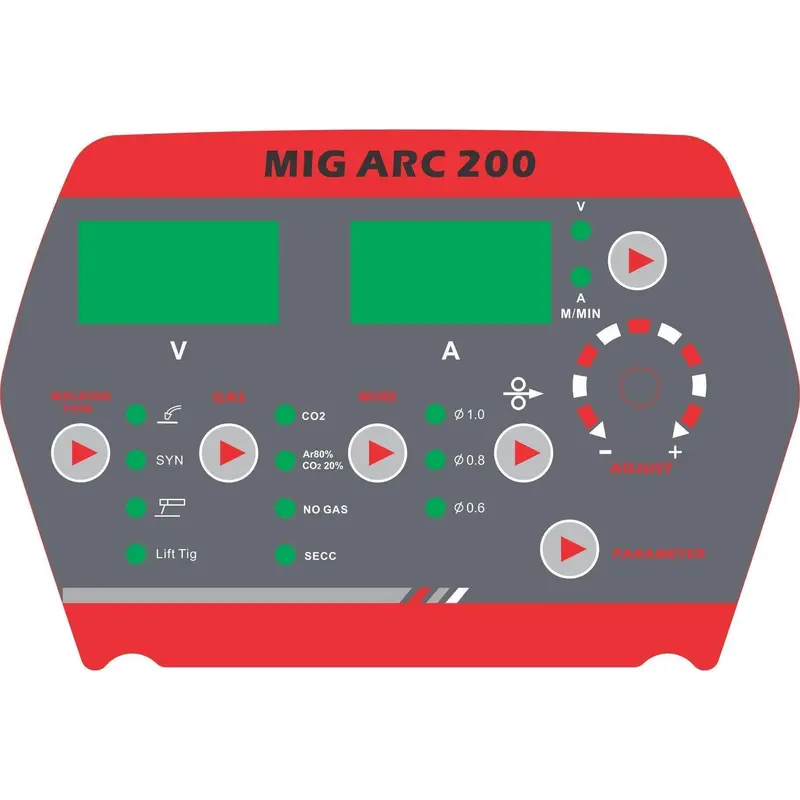

• Synergic digital control panel with preset welding modes
• Microprocessor operation for precise arc control
• Built-in wire feeder for 5kg spools
• Removable MB15 torch with 2m Euro connector
• Fan-cooled system for extended duty cycles
• Compact, portable design with carry handle
• Safety-certified with IP21S protection class
• IEC60974-1 compliant
• 12-month warranty
Specifications
• Input Voltage: AC 220V ±15%, Single Phase
• Frequency: 50/60 Hz
• Rated Input Power Capacity: MIG: 6 kVA MMA: 5.4 kVA Lift TIG: 3.3 kVA
• Rated Input Current: MIG: 27A MMA: 24.5A Lift TIG: 15A
• No-Load Voltage: 52V
• Output Current Range: MIG: 20–200A MMA: 20–200A Lift TIG: 20–160A
• Duty Cycle: 60% @ 200A
• Wire Diameter Compatibility: 0.6mm / 0.8mm / 0.9mm / 1.0mm
• Electrode Size: MMA: 2.0mm – 3.2mm Lift TIG: 1.6mm – 2.0mm
• Spool Capacity: 5kg only
• Weight: Approx. 13kg
• Dimensions: 525 × 380 × 380mm

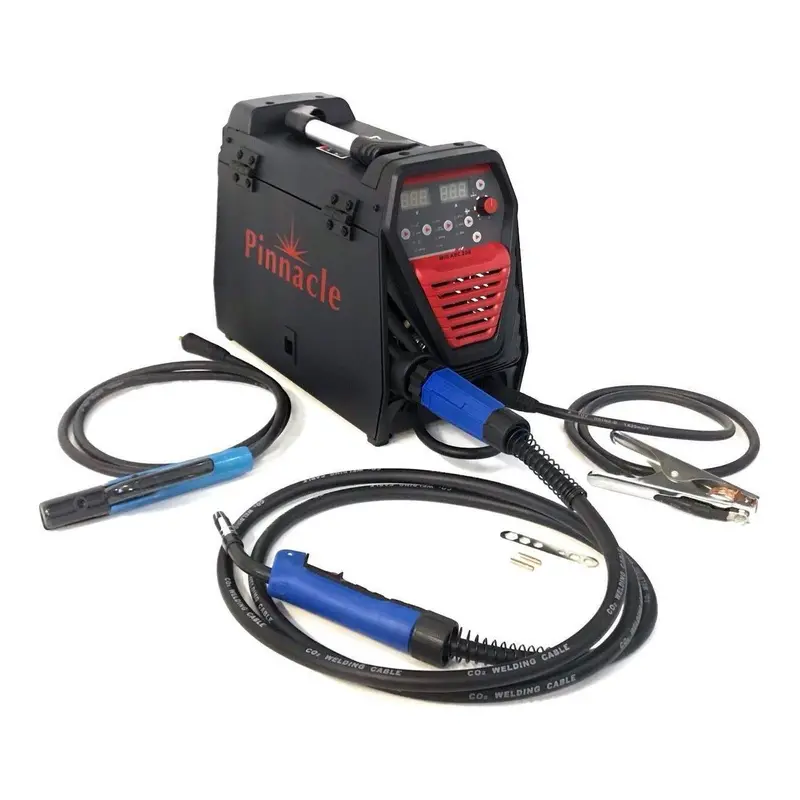

What’s Included
• Pinnacle MIGARC 200 Digital Welding Machine – 220V
• MB15 MIG Torch (Removable, 2m)
• Earth Clamp with Cable
• Electrode Holder with Cable
• User Manual
