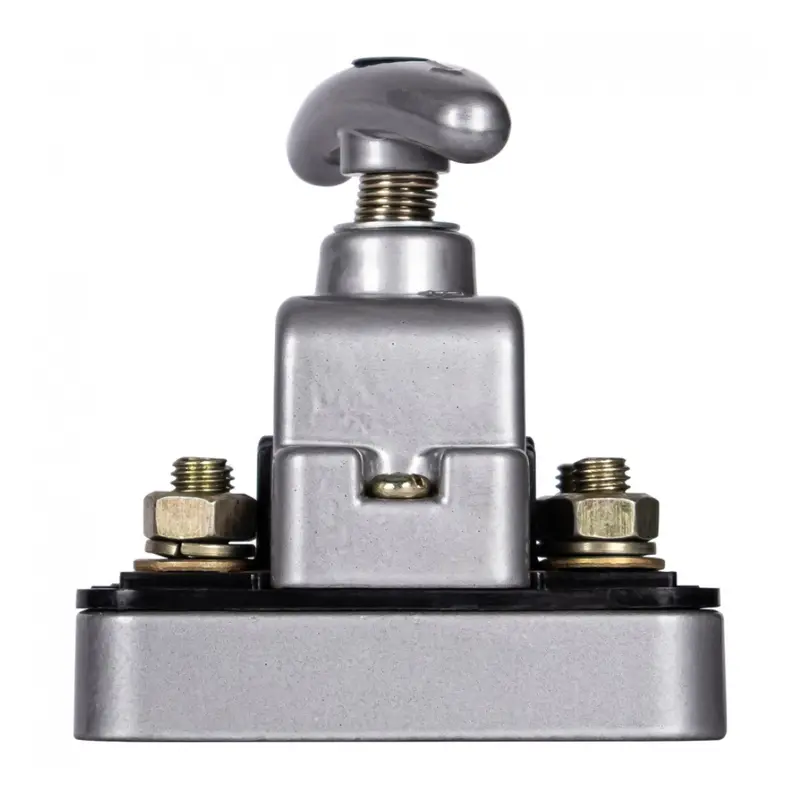

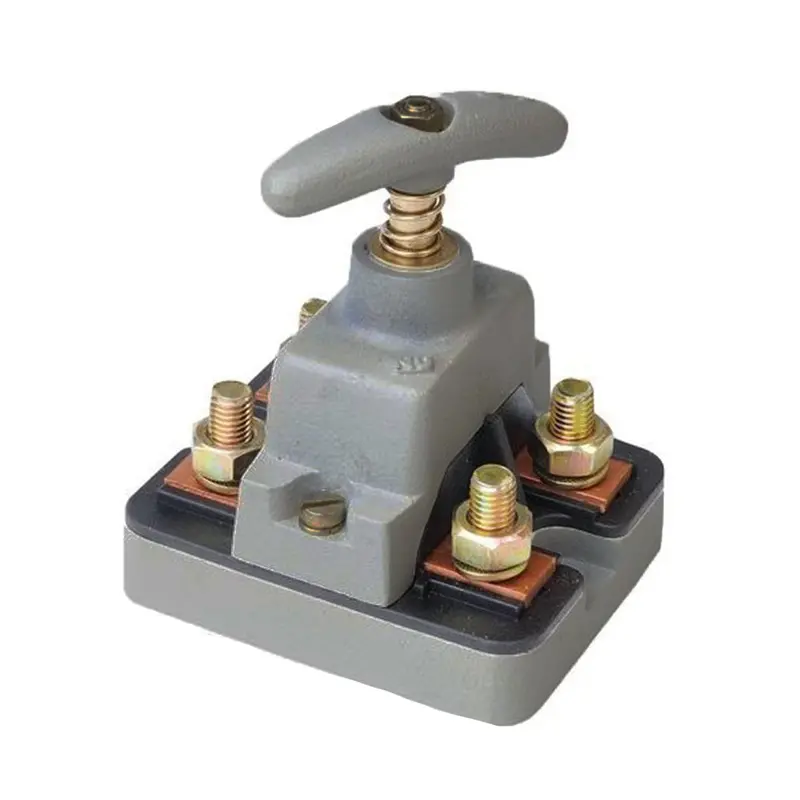

Heavy-Duty 2500A Twist-Handle Battery Isolator Switch

Description

Heavy Duty Battery Isolator Switch Twist Handle / 12/24V

24V Battery Isolator Cut-off Switch with strong T-Handle with clearly labelled ON / OFF stamp on either pole. With 4 x M10 Screw Thread Mountings.

• Working voltage: 12 / 24 V
• Connection bolts: M10
• Rated / working current: 200 A
• Maximum current: 2500 A

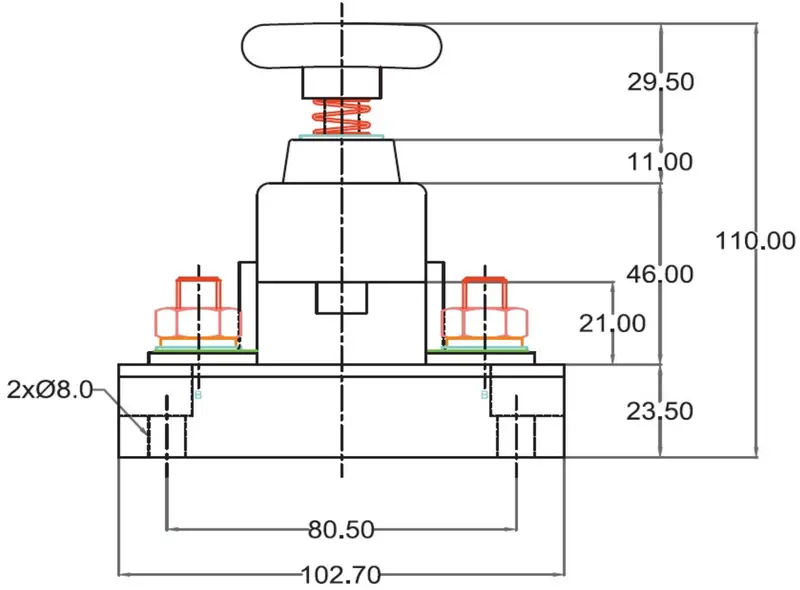

• Dimensions:
  • Base: 102.7 × 85.5 mm
  • Total height: 110 mm
• Materials:
  • Housing: Aluminium
  • Connection bolts: Copper
• Operating temperature: –20°C to +50°C
