DEUTSCH® DT Connector Kit Plug / 12 Way Black Connector / DT06-12SA-CE10

These original brand Deutsch DT Series connectors offer field proven reliability, durability and premium quality. The DT Black connectors provide enhanced front seal retention resulting in an ultra tight seal. The enhanced seal retention keeps the seal in place during mating and unmating.

These plugs are supplied with standard Size 16 Solid Contacts (0462-201-16141). The size 16 solid contact is for use use on wires from 20-16 AWG (0.5-1.5mm²). A crimper for the solid contacts is available here.

The solid barrel contacts The DT Series offers the user the ability to use multiple size contacts (Size 14, 16 & 18), each with a 13 amp continuous capacity, within a single shell.

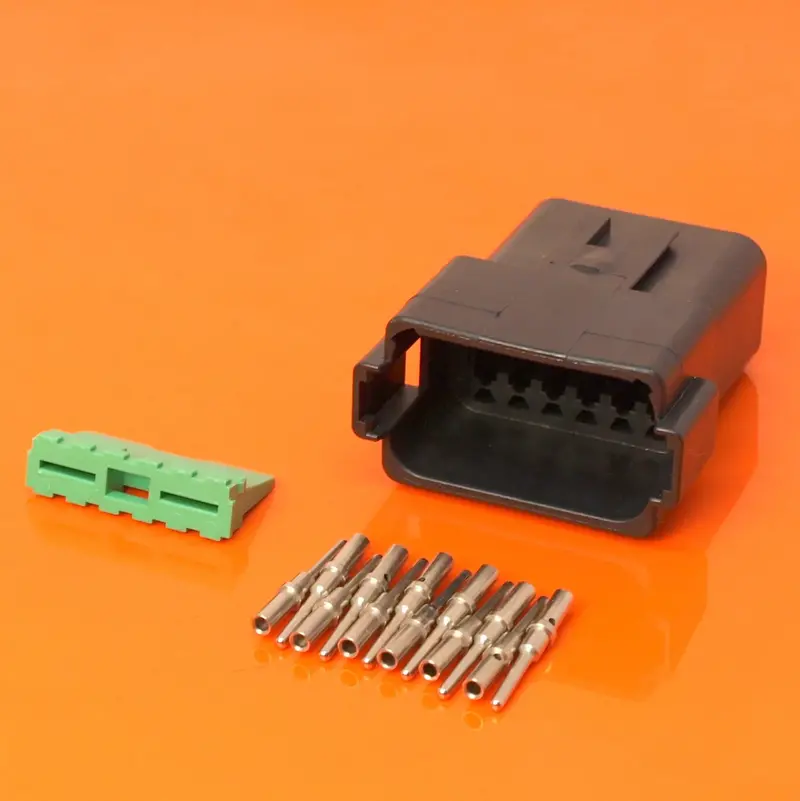

Each 12 Way DEUTSCH Plug Contains:

• 1 x DT06-12SA-CE10 Plug Housing
• 1 x W12S-P012 Plug Wedgelock
• 12 x 0462-201-16141 Socket Size 16 Terminals
