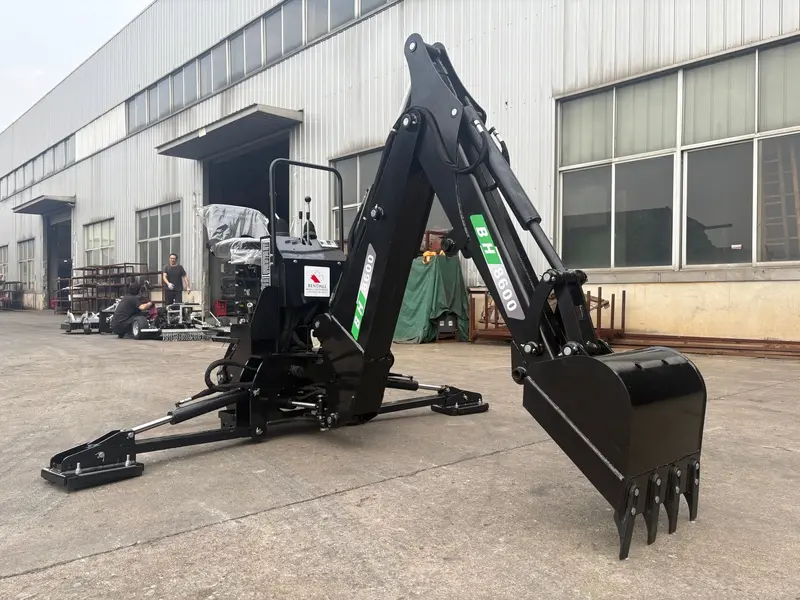

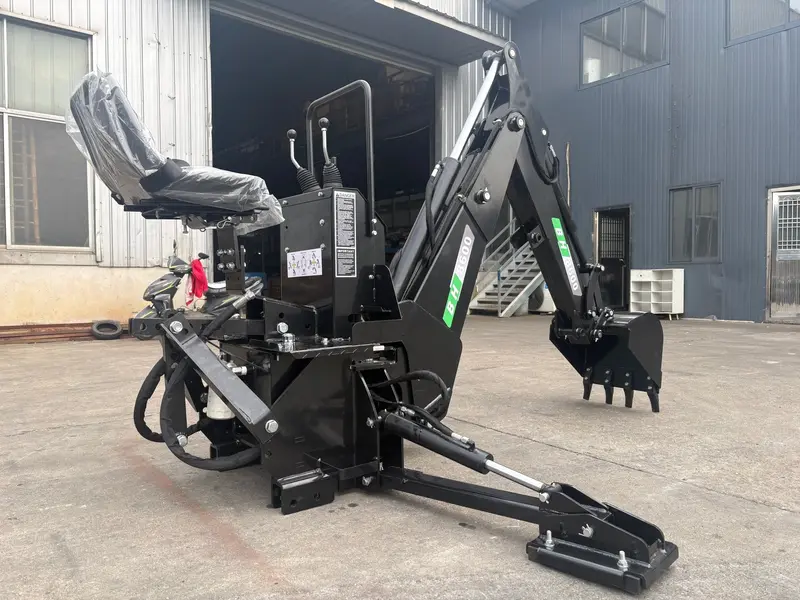

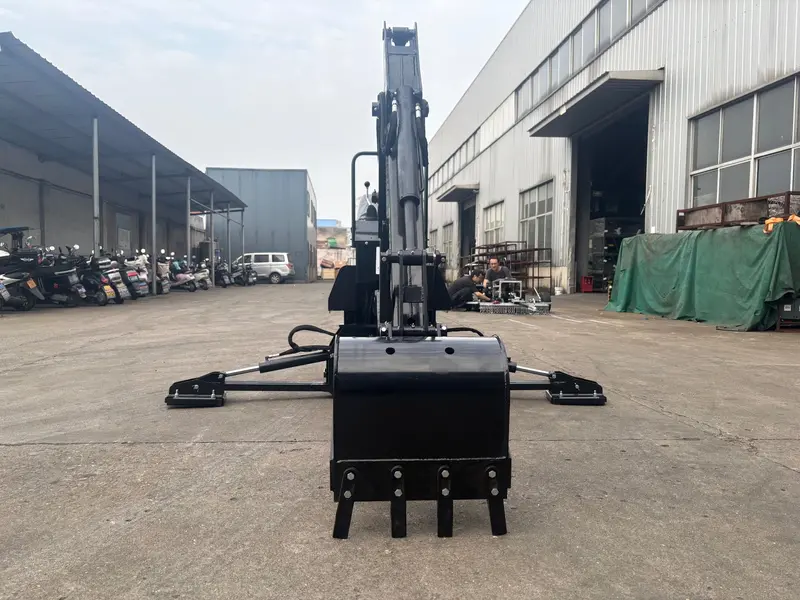

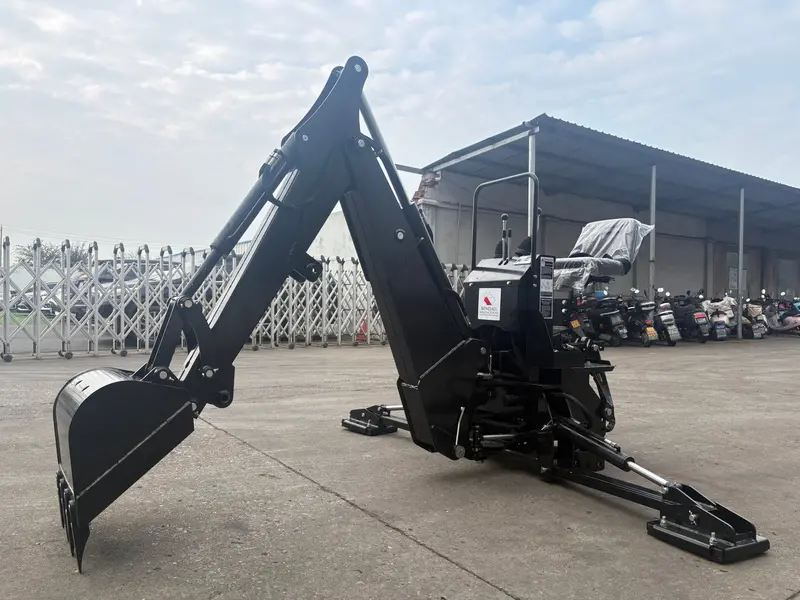

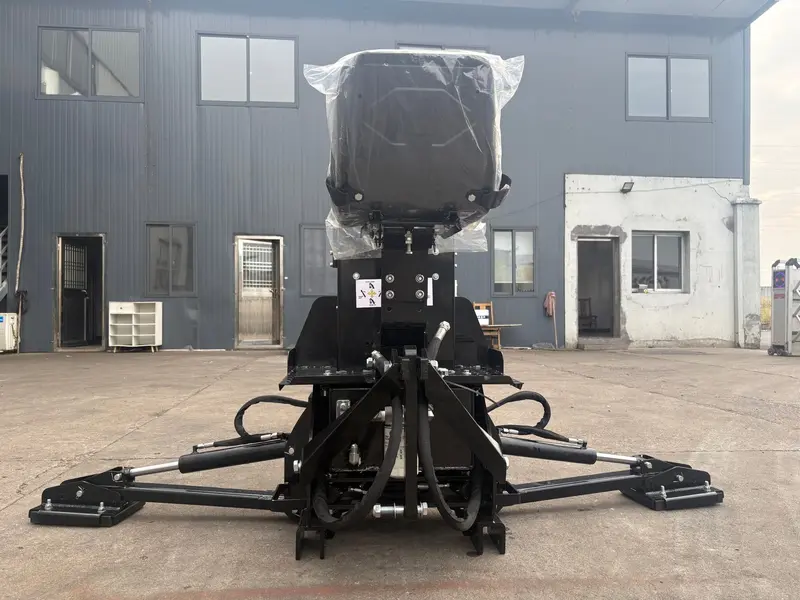

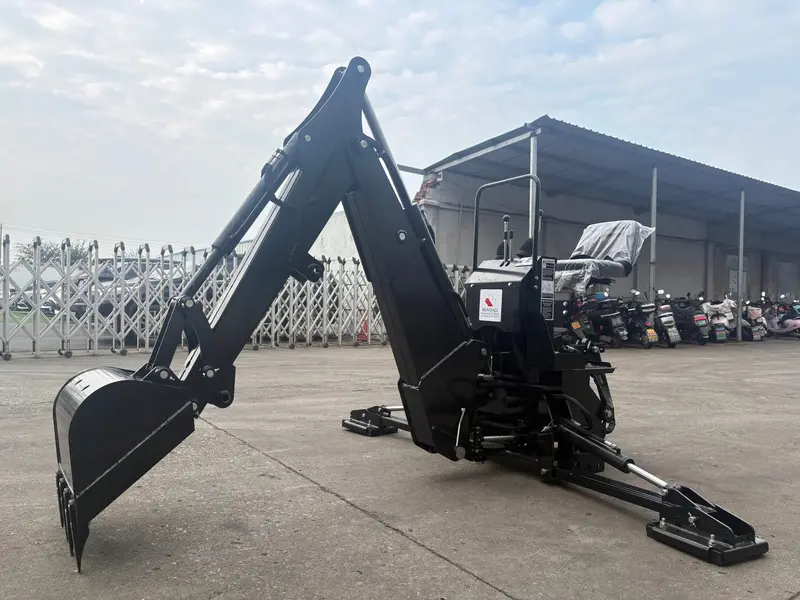

BH8600 Tractor Backhoe Attachment – 9-Foot Digging Depth Compatible with 35–65 HP Tractors

Description

The BH8600 Backhoe Attachment is designed for serious digging performance on mid-to-large tractors. Ideal for ditching, trenching, foundation work, and general farm or construction use, this backhoe features a compact yet powerful design with smooth hydraulic operation and fast mounting. Suitable for a wide range of tractor sizes, it delivers excellent reach, breakout force, and durability.

Key Features

• Ideal for ditching, trenching, road work, and excavation
• Compact structure with flexible, user-friendly operation
• Quick mount and dismount design
• Heavy-duty construction for farm and construction use
• Compatible with multiple tractor sizes

Technical Specifications

• Maximum Digging Depth: 9 ft (2.74 m)

• Digging Depth (two-foot flat bottom): 86 in (2.18 m)

• Swing Arc::180°

• Loading Height (bucket at 60°): 5 ft 2 in (1.57 m)

• Reach from Center Line of Swing Pivot: 10 ft 6 in (3.20 m)

• Transport Height (maximum): 6 ft 8 in (2.03 m)

• Bucket Rotation: 180°

• Transport Overhang: 3 ft 7 in (1.09 m)

• Undercut: 2 ft 8 in (0.81 m)

• Stabilizer Spread (down position): 8 ft 5 in (2.57 m)

• Stabilizer Spread (up position): 6 ft 0 in (1.83 m)

• Bucket Cylinder Digging Force: 3000 lbs (1360 kg)

• Dipper Stick Cylinder Digging Force: 2500 lbs (1134 kg)

• Shipping Weight (less bucket): 1100 lbs (499 kg)

• Hydraulic Flow Requirement: 5–6 GPM (19–23 L/min)

• Hydraulic Pressure Requirement: 2000 PSI (13.8 MPa)

• Recommended Tractor HP: 35–65 HP

• Condition: New
  Has Pump PTO

Included:

• 1 × BH8600 Backhoe Attachment
